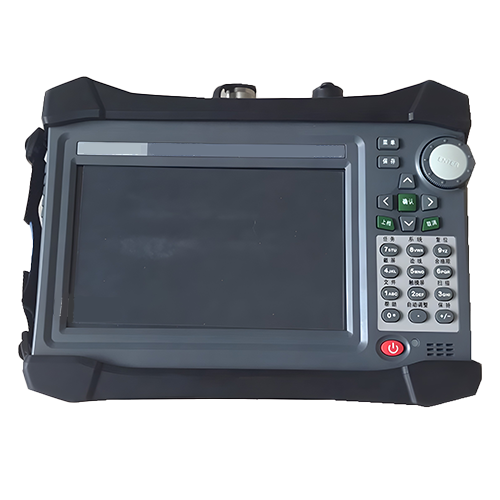

Master Cable and Antenna Analyzer with Preset Frequency Bands – Amuse Tech Solutions
Optimize wireless networks with advanced tools for RF, cable, and antenna testing, ensuring reliable performance and troubleshooting in any location.
Description
Features
- Rugged Field Design
- Preset Frequency Bands
- Dual Measurement Display
- Instant Pass/Fail Status
Technical Specifications
| LAN | RJ45 10M/100M Ethernet Port |
| Output | PDF/HTML reports |
| Optional | VFL, OPM |
| Frequency | 2 MHz-4.4 GHz |
| Resolution | 0.5 kHz |
| Screen | 7.0-in TFT LCD screen |
| AC Adapter Output | 11 to 14 VDC |
| AC Adapter Input | 100 VAC to 240 VAC, 50-60 Hz |
| Maximum Humidity | 95 % RH (non-condensing) @ 104 ℉ (40 °C) |
| Shock | Mil-PRF-28800F Class |
| Altitude | 4600 meters, operating and non-operating |
| Type Battery | Li-Ion, 7.4V, 7.5AH |
| Operation | >8 hours continuous |
| Display | TFT LCD / 7.0″ (800 x 480) |
| USB Host | USB 2.0 Type A |
| USB Client | 5-pin mini-B (connect to PC for data transfer) |
| Return Loss | 0 to 60 dB (Resolution: 0.01 dB) |
| VSWR | 1:1 to 65:1 |
| Cable Loss | 0 dB to 30 dB (Resolution: 0.01 dB) |
| Operating Temperature | 14 ℉ to 131 ℉ (-10 °C to +55 °C) |
| Storage Temperature | -40 ℉ to 176 ℉ (-40 °C to +80 °C) |
| Size | 9.64 in x 7.48 in x 2.95 in (24.5 cm x 19 cm x 7.5 cm) |
| Weight | 4.4 lb. (2 kg) |
