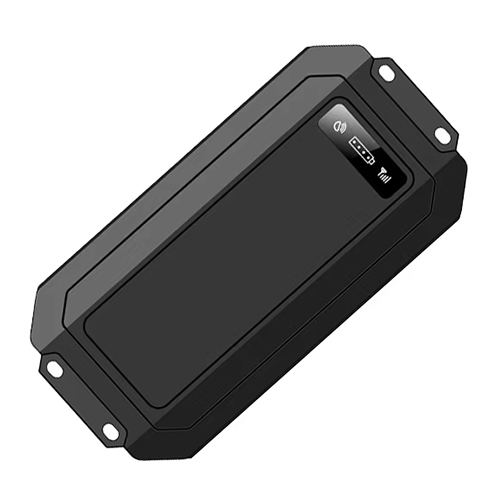

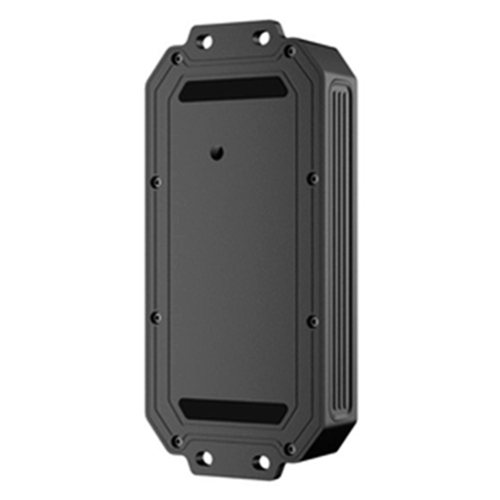

LTE M1 NB IoT GPS Tracker with IP67 Waterproof Rating – Amuse Tech Solutions
This LTE M1 NB-IoT GPS Tracker features IP67 waterproof protection, Bluetooth iBeacon, strong magnetic installation, and a 12000mAh rechargeable battery.
Description
Features
- IP67 waterproof
- Bluetooth iBeacon
- Bluetooth gateway
- Strong magnetic and screw installation
- Rechargeable 12000mah battery
Technical Specifications
| Parameter | Description |
| Communication Module | Quectel BG95 |
| Working Frequency | Cat M1: LTE-FDD B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85* Cat NB2: LTE-FDD B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B71, B85 |
| GPS Sensitivity | -147 dBm |
| Channels | 50 |
| Position Accuracy | 16.4 ft x 32.8 ft (5 m x 10 m) |
| Accuracy | 16.4 ft (5 m) CEP |
| Cold Start | < 27 s |
| Hot Start | < 1 s |
| Processor | ST M32G070CB |
| Motion Sensor | DA260 |
| Wi-Fi Position | Wifi 4.0 |
| Bluetooth | Bluetooth 5.1 |
| Battery | Disposable Lithium-ion battery and (3.7 V,12000 mAh) and ultra-low discharge rate: less than 1%, store one year below 25℃ |
| Power Consumption | Average current < 100mA; Power save < 10 uA; |
| GSM Antenna | Internal high gain |
| GPS Antenna | Internal high gain |
| SIM | MicroSim |
| Indicator | 2 status LEDs, Green: GPS, Red: Cellular (inside enclosure) |
| Battery Life (Hour) | > 96 h |
| Humidity | 5% to 95% (no fog) |
| Ingress Protection Rating | IP67 |
| Working Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Size | 6.06 in × 3.23 in × 1.18 in (15.4 cm × 8.2 cm × 3.0 cm) |
| Weight | 12.35 oz (350 g) |
