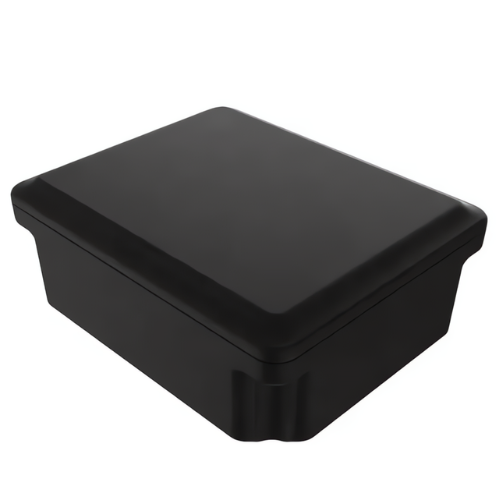

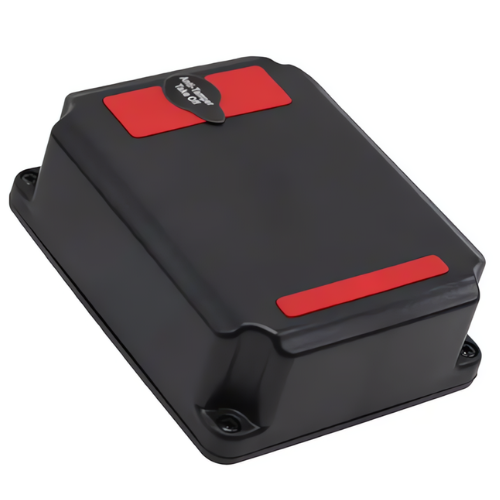

LTE GPS Tracker with Ultra Low Power Consumption – Amuse Tech Solutions
This 4G LTE GPS tracker offers reliable location tracking with high gain antennas, ultra-low power consumption, and IP67 waterproof protection.
Description
Technical Specifications
| Parameter | Description |
| Battery | Disposable Lithium-ion battery and (3.6 V,8100 mAh) and ultra-low discharge rate:less than 1%, store one year below 77 °F (25℃) |
| Communication Module | Quectel BG95 |
| Processor | STM32G070CB |
| Motion Sensor | DA260 |
| Wifi Position | Wifi 4.0 |
| Power Consumption | Average working current <100 mA; Power save current <15uA; |
| GSM Antenna | Internal high gain |
| GPS Antenna | Internal high gain |
| SIM | Microsim |
| Indicator | 2 status LEDs, Green: GPS, Red: Celluar |
| Humidity | 5 % to 95 % (no fog) |
| Ingress Protection Rating | IP67 |
| Working Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Dimension | 3.19 in x 2.60 in x 1.30 in (81 mm x 66 mm x 33 mm) (L x W x H) |
| Weight | 6.81 oz ± 0.18 oz (193 g ±5 g) |
