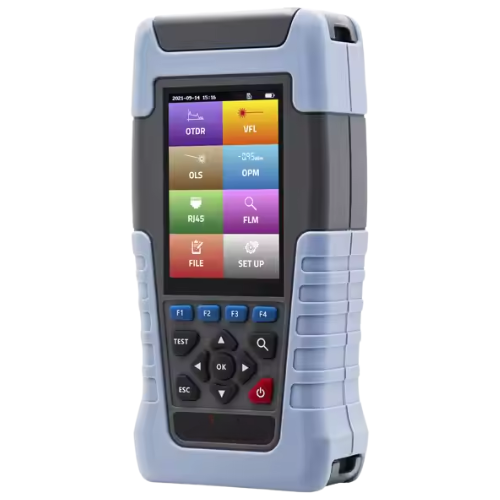

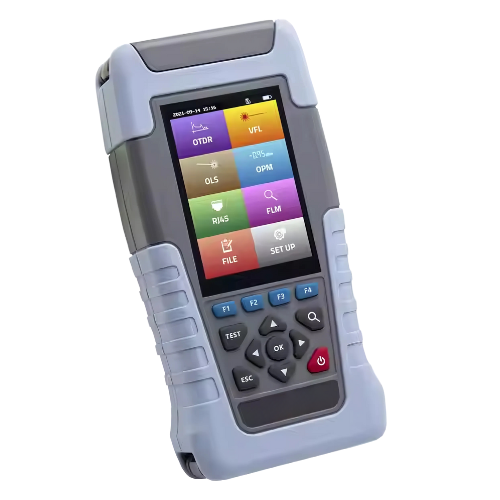

Low Price Single Mode Fiber Optic Tester Equipment – Amuse Tech Solutions
Explore Low Price Optical Fiber Amplifier, ideal for enhancing your fiber optic network with reliable signal amplification. Low Price Optical Fiber Transceiver.
Description
Technical Specifications
| Touch Display | 3.5 in |
| Loss | 0.1dB |
| Wavelength | 1310/1550 nm |
| Dynamic Range | 22/20 dB |
| Dead Zone | 1/13.12 feet (4 m) |
| Built-in VFL (Visual Fault Locator) | 10 mW |
| Optical Port | SC/UPC or FC/UPC Wavelength |
| Wavelength (Optical) | 1310±20 nm/1550±20 nm |
| Dynamic Range | 22/20 dB |
| Test Range | 0.31 mi (0.50 km), 0.62 mi (1 km), 1.24 mi (2 km), 3.11 mi (5 km), 6.21 mi (10 km), 12.43 mi (20 km), 24.85 mi (40 km), 49.71 mi (80 km), 74.56 mi (120 km) |
| Pulse Width | 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 275ns, 500ns, 1us, 2us, 5us, 10us, 20us |
| Event Dead Zone | 3.28 ft. (≤1 m) |
| Attenuation Dead Zone | 13.12 ft (≤4 m) |
| Refractive Index | 1.000 to 1.999 |
| Sampling Points | 64000 |
| Sampling Accuracy | 0.621371 mi (1 km) |
| Distance Accuracy | ± (3.28 ft (1m) + test distance × 3 × 10⁻⁵ + sampling resolution) (excluding IOR uncertainty) |
| Loss Accuracy | 0.1 dB |
| Linearity | 0.1 dB |
| Reflectance Accuracy | ±2 dB |
| Event Display | 1) Fiber end, 2) Reflection event, 3) Splice loss |
| VFL | Working wavelength: 650±10nm, Output: 10mW, CW/1Hz/2Hz |
| Stable OLS | Working wavelength: 1310±20nm/1550±20nm, Output >-13dBm, CW/270Hz/1kHz/2kHz |
| OPM | Calibrated wavelength: 850/1300/1310/1490/1550/1625/1650nm, Test range: -70~+10dBm |
| RJ45 Line Sequence Test | TIA568-A and TIA568-B standard |
| Optical Interface | OTDR: standard FC/UPC, optional SC/UPC, FC/APC, SC/APC |
| VFL: 0.1 in (.25 cm) universal port | |
| OLS: share the OTDR port | |
| OPM: 0.1 in (.25 cm) universal port | |
| Electrical Interface | RJ45 port×2, RJ45 remote module, USB Type-C |
| Data Storage | Pluggable 16GB micro-SD card |
| Battery | 5000mAh lithium battery |
| Working Humidity | 0% to 85% (non-condensing) |
| Working Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Size | 7.58 in × 3.69 in × 1.85 in (19.29 cm × 9.38 cm × 4.7 cm) |
| Weight | 1.26 lb. (0.57 kg) |
| Dimensions | 7.58 in × 3.69 in × 1.85 in (19.29 cm × 9.38 cm × 4.7 cm) |
