Low Power Long Range IoT Module High Data Rate with LED Sign Compatibility – Amuse Tech Solutions
Utilize our low-power, long-range IoT module with high data rate and LED sign compatibility for efficient and versatile connectivity.
Description
Overview

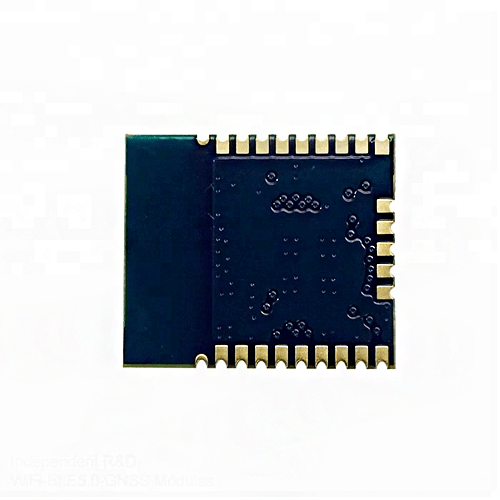

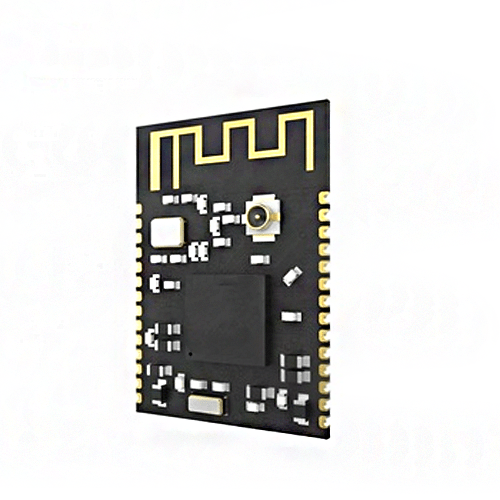

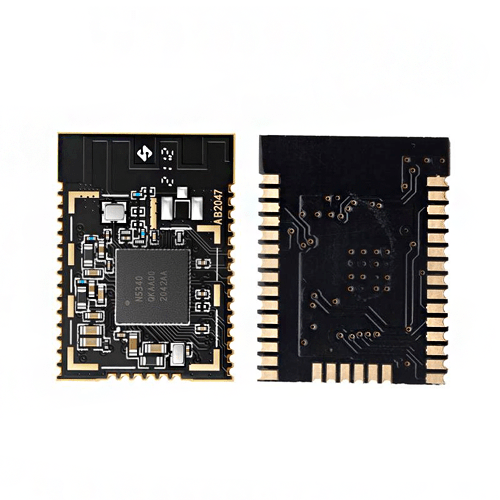

Amuse Tech Solutions ZigBee Module uses a narrowband embedded radio modem for the 434 MHz ISM band. Compact and designed for ease of use, it incorporates LoRa® technology to achieve extremely long range at low power, albeit at low bit rate. Its superior sensitivity allows the possibility of communication into areas once considered difficult for RF to penetrate using a dedicated command system with a simple to use proprietary protocol.
Features
- Low Power Consumption
- Long Range Communication
- LED Sign Compatibility
- High Data Rate
- Frequency Hopping
- Compact Form Factor
- Wide Operating Voltage Range
- Integrated Antenna Options
- Data Encryption and Security
- Serial Interface
Technical Specifications
| Emission type | F1D |
| RF Output Power | < 10 maw Nominal, Contact (50 Ω), SMA |
| Communication method | Simplex or half duplex |
| RE Bit Rate | 15 bps to 245 bps (LoRa mode) 4,800 bps (FSK mode)Actual speed with LoRa mode depends on spreading factor |
| Frequency range | 433.075 MHz to 434.7750 MHz |
| Number of Channels | 137 (Channel step 12.5 kHz) |
| Receiver Sensitivity | < -133 dBm (LoRa mode 128 chip) < -115 dB, (FSK mode) |
| Operating voltage | 3.3 V to 5.5 V 3.5 V to 5.0 V recommended |
| Consumption current | 29 mA typ. (TX) 17 mA typ. (RX) |
| Modulation | 2 FSK or LoRa Selectable using command |
| Number of I/O | 8 |
| Communication range | FSK: 600m LOS / LoRa: a few km LOS |
| External dimensions | 1.57 in x 1.14 in x 0.24 in (40 mm x 29 mm x 6.2 mm) |
