LoRaWAN GPS Tracker with 12KM Range, 38000mAh Battery – Amuse Tech Solutions
LoRaWAN GPS tracker with 12KM range, 38000mAh battery, BLE 4.0, -148 dB sensitivity, -20°C to 65°C operating temperature, for long-distance tracking.
Description
Overview

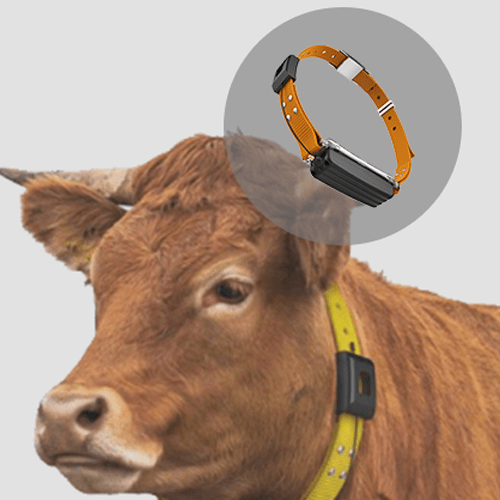

Amuse Tech Solutions lora IoT sensor for livestock tracking is a LoRa-based GPS collar with Li-SOCl2 battery. It collects GPS location data and uplinks to Lora WAN gateway according to schedule. The collar is wirelessly programmed by the network server and allows remote program changes.
Features
- High-accuracy LoRa technology for real-time livestock monitoring
- Durable construction withstands harsh agricultural environments
- Extensive coverage for tracking animals over large areas
- Captures and transmits essential data for livestock health and management
- Simple setup process for quick and effective deployment on farms
Technical Specifications
| Frequency Band | 433 MHz to 510 MHz or 868 MHz to 928 MHz, Optional |
| Battery Specs | 38000 mAh Li − SOCl2 battery, non-rechargeable |
| Communication range | 5.59 miles to 7.45 miles LoS , 1.86 miles to 3.72 miles (9 KM to 12 KM LoS, 3 KM to 6 KM) in dense environment |
| Modulation | LoRa Wan |
| Transmit Power | +27 dBm |
| BLE | BT 4.0 |
| GPS positioning solution | Sensitive down to -148 dB |
| GPS accuracy | 16.4 ft (5 m) |
| Temperature | 4 °F to 149 °F (- 20 ℃ to 65 ℃) |
| Dimensions | 3.93 in x 1.29 in x 0.78 in (100 mm x 33 mm x 20 mm) |
| Weight | 0.17 lb (80 g) |
