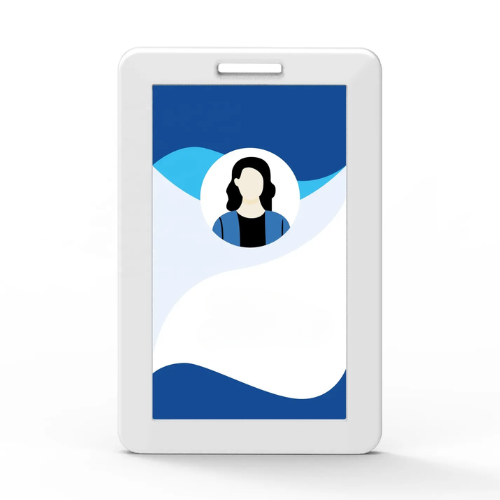

LoRaWAN BLE 5.0 GNSS Wearable Smart Office Badge Tracker – Amuse Tech Solutions
Bluetooth 5.0 and LoRaWAN tracker with GNSS, AES128 encryption, and adjustable frequencies for accurate indoor and outdoor asset tracking.
Description
Features
- BLE moduleÂ
- M2M and IoT applicationÂ
- LoRaWAN connectivityÂ
Technical Specifications
| Chipset | SX1276 |
| Bluetooth Protocol | Bluetooth 5.0 |
| LoRaWAN Protocol | LoRaWAN 1.0.2 B |
| Lora Distance | > 0.6 mi (1 km) in urban area |
| Lora Sensitivity | – 139 dBm at SF12, BW 125 kHz, 434 MHz or 470 MHz – 137 dBm at SF12, BW 125 kHz, 868 MHz or 915 MHz |
| Bluetooth Distance | 82 ft (25 m) sight distance |
| Indoor Tracking | Bluetooth, 3 ft to 9.8 ft (1 m to 3 m) accuracy |
| Outdoor Tracking | GNSS, 8.2 ft (2.5 m) accuracy |
| Operating Current | 20 μA to 139 mA |
| G-Sensor | Supported |
| Encryption | AES 128 |
| Low Battery Alert | Supported |
| Vibration Intensity Adjustment |
Supported |
| Operating Mode | GNSS coordinates acquisition Frequency adjustable LoRa communication frequency adjustable Automatic BLE and GNSS tracking switching |
| Operating Temperature | – 14 °F to 140 °F (- 10 °C to 60 °C) |
