Long-Range Distance Sensor, 65.6ft to 590.6ft, 0.59in Resolution – Amuse Tech Solutions
This laser scanner has a singular ranging time of 0.25 ms, a frequency of 2000 Hz to 8000 Hz (typ. ≥4000 Hz), and a scanning frequency of 1 Hz to 10 Hz.
Description
Overview

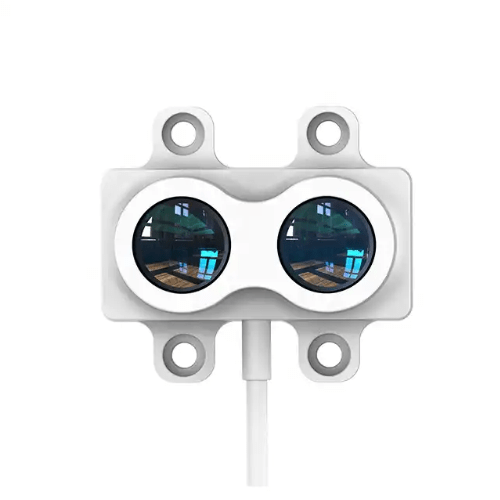

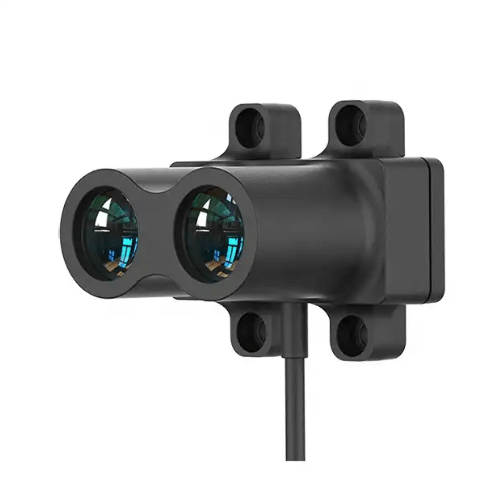

Amuse Tech Solutions single point LiDAR sensor is able to detect front objects and provide accurate distance measurement. It has a high immunity to sunlight and other ambient light which makes it perform excellently outdoors. All owned features make it very suitable for various application, such as industrial distance measurement, UAV altimetry and obstacle avoidance, robot obstacle avoidance, intelligent transportation, automobile collision avoidance, security monitoring and so forth.
Features
- Centimeter level accuracy
- Measurement frequency up to 2000 Hz
- Improved DeTOF technology
- Adaptive baud rate
- Indoor or outdoor
- IP 65 protection grade
- Internal all stainless-steel shield protection
- Internal anti reverse connection, over voltage protection
- Multiple interfaces available
Technical Specifications
| Measurement range | 65.6 ft, 131.2 ft, 196.9 ft, 393.7 ft, 590.6 ft (20 m, 40 m, 60 m, 120 m, 180 m) |
| Blind area | 1.97 in (5 cm) |
| Distance resolution | 0.59 in (1.5 cm) |
| Measurement frequency | 1 Hz to 2000 Hz |
| Lens material | Coated glass |
| Working range | 65.6 ft (20 m) 90%
19.7 ft (6 m) 10% |
| Distance accuracy | 1.2 in (3 cm), 1.97 in (5 cm) |
| Cable length | 13.8 ft (35 cm) |
| Laser divergence angle | 34 m rad (1.9°) |
| FOV | 47 m rad (2.7°) |
| Protection grade | IP 65 |
| Supply voltage | 5 V to 28 V |
| Accuracy | ±1.97 in (5 cm) |
| Lens material | Coated glass |
| Power dissipation | <160 m W |
| Laser wavelength | 905 nm |
| Operation temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Dimension | 1.6 in x 1.6 in x 1.8 in (40 mm x 40 mm x 45 mm) |
| Weight | 0.1 lb (45 g) |
