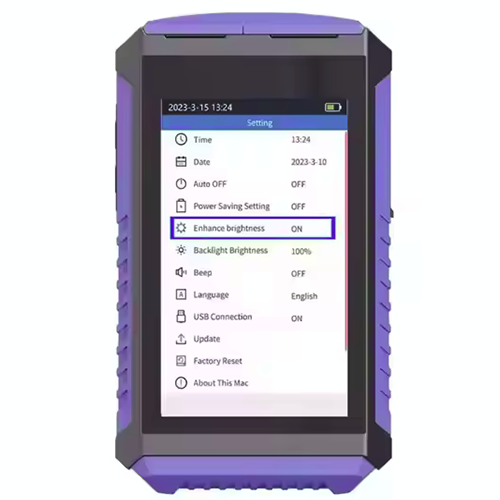

Live Fiber OTDR with Real Time Analysis and Fast Detection – Amuse Tech Solutions
Live fiber optic OTDR for accurate network testing. Features real-time analysis, fault detection, and easy operation. Ideal for fiber maintenance.
Description
Features
- Live Network Testing
- Real Time Analysis
- Fast Fault Detection
- User Friendly Interface
Technical Specifications
| Type | OTDR |
| Use | FTTH, FTTX, FTTB |
| Network | Wireless LAN, Bluetooth, Wired LAN, ONVIF, SDK, TCP, IP, POE, GPRS, Wi-Fi, 4G, GSM, 3G, Wiegand |
| Wavelength | 1550 nm ±20nm |
| Event Blind Zone | 4.9 ft (1.5 m) |
| Attenuation Blind Zone | 26.2 ft (8 m) |
| Dynamic Range | 24 dB |
| Test Distance | 0.06 mi to 62 mi (0.1 km to 100 km) |
| Pulse Width | 5 ns, 10 ns, 20 ns, 30 ns, 50 ns, 80 ns, 100 ns, 200 ns, 300 ns, 500 ns, 800 ns, 1 µs, 2 µs, 3 µs, 5 µs, 8 µs, 10 µs, 20 µs |
| Linearity: ± 0.05 dB/dB | Linearity: ± 0.05 dB/dB |
| Maximum Sample Points | ≥ 20,000 |
| Maximum Sample Resolution | ≤ 0.1 ft (0.03 m) |
| Loss Resolution | 0.01 dB |
| Loss Threshold | 0.20 dB |
| Refractive Index | 1.00000 to 2.00000 |
| File Format | SOR Standard File Format |
| Loss Analysis | 4-point method / 5-point method |
| Laser Safety Level | Class II |
| Connector Type | SC/PC |
| Data Storage | 8 GB |

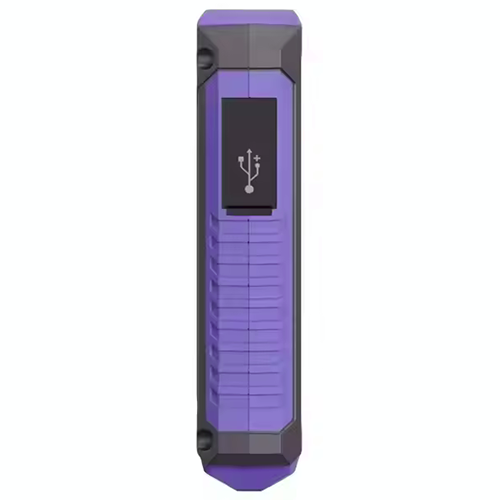

| Data Interface | Type-C USB |
| Relative Humidity | 0% to 95% non-condensing |
| Working Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Weight | ≤ 14.11 oz (400 g) (Battery included) |
| Size | 5.67 in × 3.39 in × 1.30 in (14.4 cm × 8.6 cm × 3.3 cm) |
