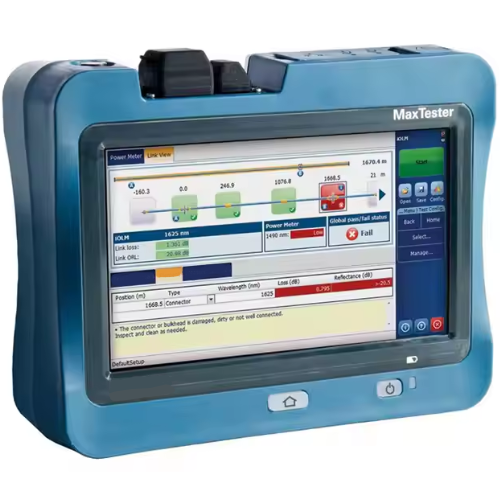

Lightweight OTDR for Fiber Networks Outdoor Touchscreen – Amuse Tech Solutions
Portable OTDR ideal for testing in short access networks and fiber optic architectures, designed for field installers and technicians.
Description
Features
- Lightweight tablet design
- Outdoor touchscreen
- Long-lasting battery
- Rugged field durability
Technical Specifications
| Display | 7-in (17.8 cm) outdoor-enhanced touchscreen, 800×400 TFT |
| Interfaces | 2x USB 2.0 ports, RJ45 LAN 10/100 Mbps |
| Storage | 2 GB internal memory (20,000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery, 12 hours of operation |
| Power Supply | AC/DC adapter, input 100 to 224 VAC, 50 to 60 Hz |
| Wavelength | 1310 nm to 1550 nm |
| Dynamic Range | 30 dB to 28 dB |
| Event Dead Zone | 3.28 ft (1 m) |
| Attenuation Dead Zone | 13.12 ft (4 m) |
| Distance Range | 328 ft to 104.99 mi (0.1 to 160 km) |
| Pulse Width | 16.4 ft to 65,616 ft (5 to 20,000 ns) |
| Linearity | ±0.05 dB/dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Sampling Resolution | 0.001 ft to 16.4 ft (0.04 cm to 5 m) |
| Sampling Points | Up to 256,000 |
| Distance Uncertainty | ± (2.46 ft + 0.005% x distance + sampling resolution) |
| Measurement Time | User-defined |
| Reflectance Accuracy | ±2 dB |
| Typical Real-time Refresh | 3 Hz |
| Relative Humidity | 0 % to 95 % non-condensing |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Dimension | 6.1 in x 7.9 in x 2.7 in (15.5 cm x 20 cm x 6.8 cm) |
| Weight | 2.84 lbs. (1.29 kg) |
