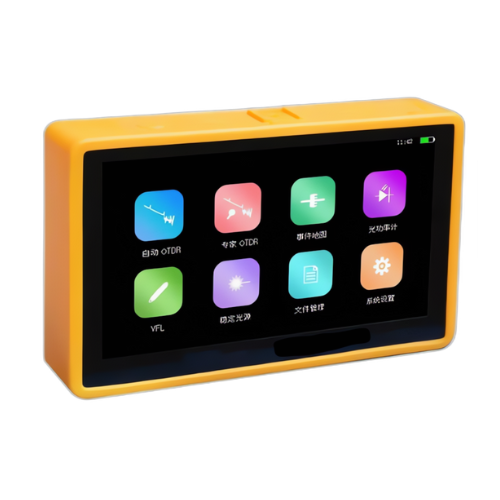

Lightweight Fiber OTDR with High Dynamic Range Display – Amuse Tech Solutions
Measures fiber length, loss, and splice quality. Ideal for construction, maintenance, and testing in various optical communication systems.
Description
Features
- Large Touchscreen Display
- High Dynamic Range
- Ultra-Short Blind Zone
- Long Battery Life
Technical Specifications
| Certification | ISO, Tlc IEC RoHS |
| External Interfaces | USB Type C, Micro SD |
| Full Load Capacity | 12 Core |
| Keywords | Fiber OTDR, Optic OTDR, Testing OTDR, Fiber Tester OTDR, Test OTDR |
| Transport Package | PCS |
| Trademark | Fibconet |
| Maximum Dynamic Range | 28 dB |
| Battery Operating Time | Standby ≥6h (High brightness) |
| Display | 7in TFT color LCD (capacitive touch screen) |
| Operating Wavelength | 1310/1550 ± 20 nm |
| Optical Output | Interface FC/UPC SC/UPC |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimensions | 7 in × 4.3 in × 1.5 in (17.7 cm × 10.9 cm × 3.7 cm) |
| Weight | 1.76 lb. (0.8 kg, including battery) |
