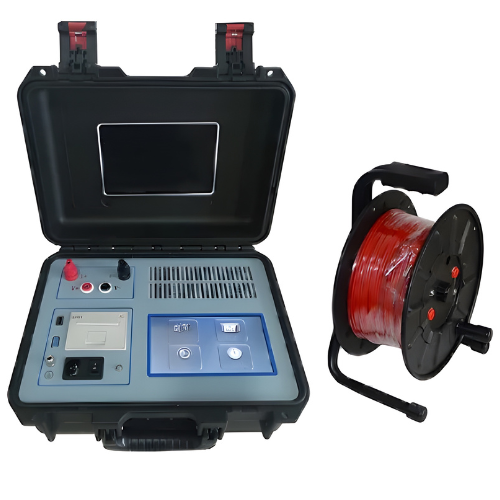

Lead Resistance Test with Wide Resistance Range – Amuse Tech Solutions
Cable continuity tester offers precise resistance measurements and a wide range of outputs with high accuracy and reliability for cable fault detection.
Description
Features
- Wide Resistance Range
- Accurate Measurement Resolution
- LCD Screen Display
- 1000 Records Storage
- Built-In Battery Power
Technical Specifications
| Output Current | 1 A, 3 A, 5 A, 10 A |
| Min. Resolution | 0.1 μΩ |
| Measuring Range | 0.01 mΩ to 10 Ω (1 A), 0.005 mΩ to 3 Ω (3A), 0.001 mΩ to 2 Ω (5A), 0.0008 mΩ to 0.8 Ω (10A) |
| Resolution | 0.1 μΩ |
| Display | LCD Screen |
| Storage | 1000 Records |
| Accuracy | ± (0.5% + 2 digits) |
| Working Temperature | 32 °F to 104 °F |
| Working Humidity | <90% RH, no condensation |
| Power Supply | Built-in Battery, AC 220V ±10V, 50Hz ±1Hz |
| Max. Power Consumption | 100 W |
| Size | 11.81 in x 9.45 in x 5.51 in |
| Weight | Tester: 8.38 lbs., Accessories Box: 18.74 lbs |
