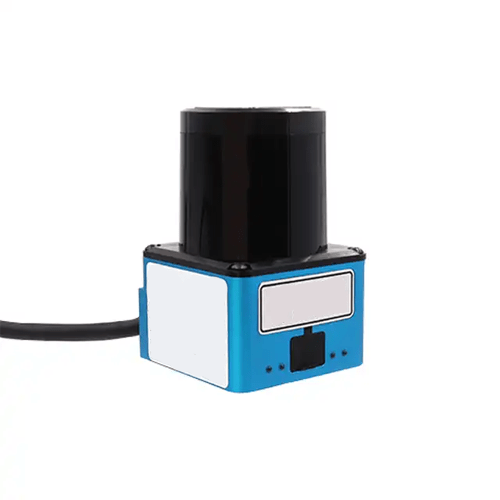

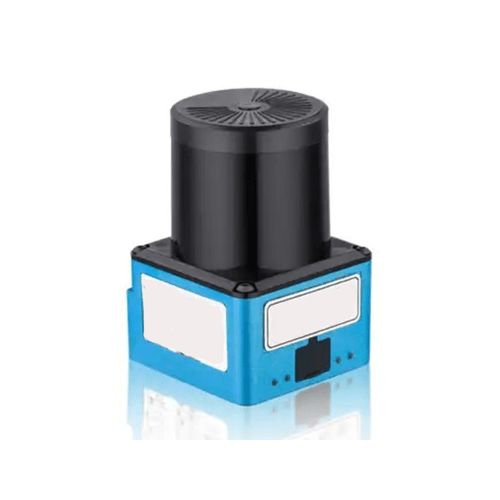

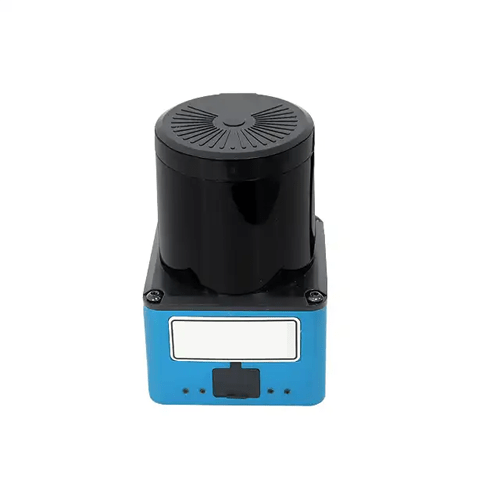

Laser Scanning Sensor, 10m Detection Range, CAN Bus, Ethernet Support – Amuse Tech Solutions
The Laser Scanning Sensor has a detection range from 0.05 m to 10 m, an angular resolution of 0.1° or 0.2°, a laser wavelength of 905 nm, and Class 1.
Description
Features
- Ranging method based on TOF
- 270°detection for object distance and angle
- Detection ranges up to 10m
- Small size
- Support for multiple communication methods
- Obstacle-avoidance channels 64
- Customizable data format
- AGV route planning
- SLAM mapping
Technical Specifications
| Operating voltage | DC 18 V to 32 V |
| Rated power | < 2 W |
| Light source | Laser wavelength 905nm |
| Laser class | 1 (IEC 60825-1:2014, EN 60825 to 1:2014) |
| Detection distance | 0.05 m to 10 m (Reflectivity 90 %) |
| Detection range | 270° |
| Identify object shape | Any shape |
| Angular resolution | 0.1°, 0.2° |
| Output Raw test data | √ |
| Protecting areas | 3 (Warning zone 1, warning zone 2, protecting zone) |
| Obstacle-avoidance channels | 64 |
| Switch input | 1 |
| Switch output | 4 NPN |
| CAN BUS port | Supported |
| Ethernet port | Supported |
| Laser scanning frequency | 20 Hz |
| Response time | Typical value 50 mms |
| Systematic error | < 40 mm |
| Statistical error | < 30 mm |
| Detection output time-delay | 0 mms to 500 mms, configurable |
| Detection holds time-delay | 0 mms to 500 mms, configurable |
| Object reflectivity | 40 % to 1000 % |
| Ambient light strength | < 80000 lux |
| Operating environment | Indoor, 14 °F to 122 °F. (-10 °C to +50 °C) |
