Laser Rangefinder 3-700m with 1m Accuracy, 100mA, and 100Hz Frequency – Amuse Tech Solutions
Laser range finder with 5.90 to 472.44 in range, 360° scanning, 0.001 in resolution, 0.45 to 1.35° angle resolution, and 2000-8000 Hz frequency.
Description
Overview

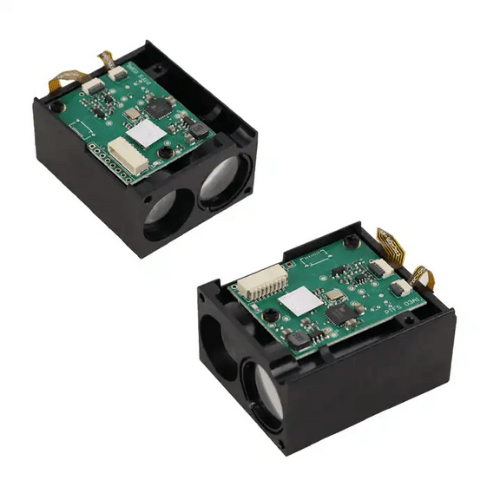

The Amuse Tech Solutions Rangefinder Sensor Lidar module is the latest generation of outdoor long-distance lidar ranging module. It has the characteristics of small size, light weight, strong measurement ability, high measurement accuracy, and simple installation and operation.
Technical Specifications
| Range | 3 m to 700 m |
| Absolute Accuracy | 1 m |
| Frequency | 100 Hz |
| Resolution | 0.1 m |
| Light | 905 nm |
| Voltage | 2.5 V to 3.5 V |
| Current | 100 mA |
| Power | 330 mW |
| Temperature | 32 ºF to 122 ºF (0 ºC to 50 ºC) |
| Size | 1.6 in x 1.3 in x 0.8 in (43 mm x 35 mm x 21 mm) |
| Weight | 0.06 lb (30 g) |
