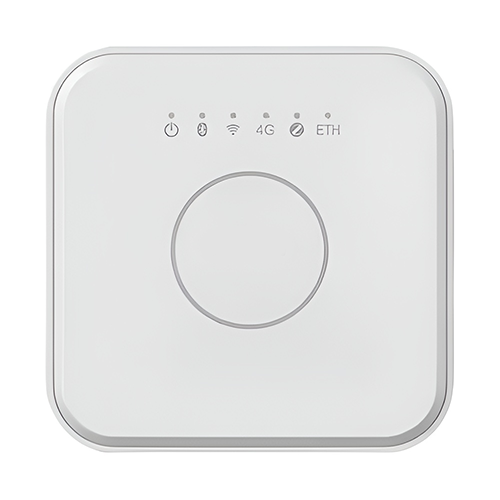

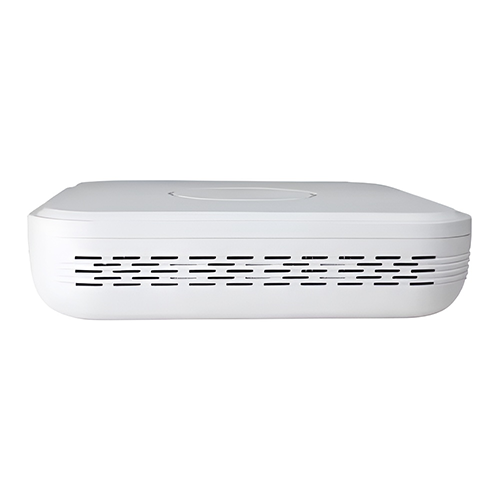

IoT4G Ceiling Edge Gateway with 2GB RAM High Programmable – Amuse Tech Solutions
Advanced 4G IoT ceiling edge gateway with 2GB RAM offers high programmability for versatile edge computing applications in indoor environments.
Description
Technical Specifications
| CPU | Quad-core Cortex A53 |
| RAM | 2GB |
| EMMC | 32GB |
| SD Card | Up to 5.12 in (128GB) |
| Power Supply | POE and DC 12V power supply |
| User Button | User-defined button |
| Switch | On or Off power |
| USB | USB 2.0 |
| Indicator LEDs (RGB) | Power & battery LED, Wireless LED, LTE indicator |
| Wireless Protocol | Zigbee, Z-WAVE, BLE, Wi-Fi |
| Network Interface | CAT-5 or CAT-5E, WAN or LAN variable |
| SIM Card | Dual Micro SIM card |
| Antenna | Zigbee or BLE PCB; Z-WAVE or Wi-Fi FPC |
| Installation Method | Flat, Ceiling, DIN |
| RTC | Real Time Clock operated from battery |
| Operating Temperature | 14°F to 140°F (-10℃ to 60℃) |
| Storage Temperature | -40°F to 185°F (-40℃ to 85℃) |
| Operating Humidity | 10% to 90% |
| IP Rating | IP22 |
| Cooling | Heat dissipation silicone or aluminium |
| Current | 1.5A at 12V |
