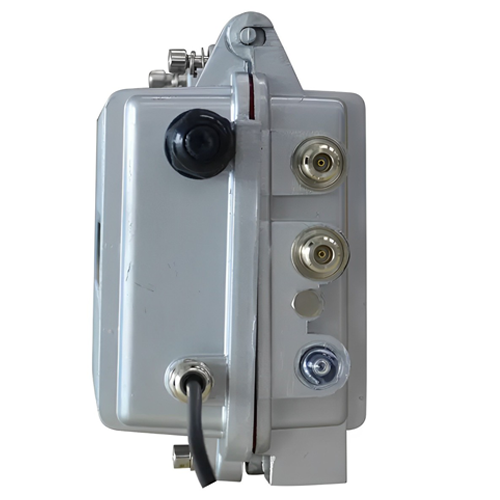

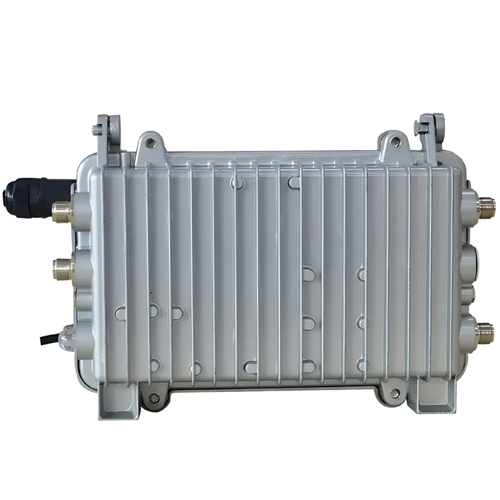

Industrial LoRaWAN Gateway with Dual Band WiFi 4G LTE – Amuse Tech Solutions
LoRaWAN gateway with cloud/local deployment, supports major protocols, long-range, secure data transfer, remote monitoring, and efficient network management.
Description
Features
- Supports all major LoRaWAN protocols.
- Cloud and local deployment options.
- Reliable operation in diverse conditions.
- Protects sensitive data during transfer.
- Integrates easily with various applications.
- Handles growing networks and data.
- Simplifies gateway configuration and management.
- Enables remote monitoring and control.
- Prevents unauthorized access and breaches.
- Optimizes battery life for operation.
- Efficient data routing and management.
Technical Specifications
| Application | INDUSTRIAL |
| Communication Network | Start topology |
| LoRaWAN Protocol | Class A, Class B, Class C |
| Working Frequency | EU433, CN470-510, CN779-787 |
| Communication Distance | 3.728 mi (6 km) |
| Location | GPS, Beidou |
| Wireless Management | WIFI management and upgrade |
| Local Storage | 32G TF card |
| Communication Bandwidth | 125 kHz, 250 kHz, 500 kHz |
| Communication Network | Star topology |
| LoRaWAN Protocol | Class A, Class B, Class C |
| Working Frequency | EU433, CN470-510, CN779-787, EU863-870, US902-928, AU915-928, AS923, KR920-923 |
| Communication Distance (Outdoor) | 6 km |
| Max TX Power | 25 ± 2 dBm |
| RX Sensitivity | Max -140 dBm @ LoRa; -70 dBm @ WiFi |
| Communication Bandwidth | 125 kHz, 250 kHz, 500 kHz |
| Channels | 8 upstream channels, 1 downstream channel |
| Data Loss | No data loss and no relay wireless communication |
| Speed | Link Adaptive Speed |
| Work Mode | Support different frequency and same frequency |
| Location | GPS, Beidou |
| Report To Server | 3G/4G, Wired network |
| Wireless Management | WiFi management and upgrade |
| Local Storage | 32 GB TF card |
| Antenna Interface | I-pex to N type, external |
| LoRa antenna: N-type female, LoRa fiberglass antenna, 2 dBi gain | |
| 4G antenna: N-type female, 4G fiberglass antenna, 3 dBi gain | |
| WiFi antenna: N-type female, 2.4G fiberglass antenna, 3 dBi gain | |
| GPS antenna: N-type female, GPS fiberglass antenna, 4 dBi gain | |
| Power | Power options: AC220, POE, Solar power |
| POE port supports auto 10/100 Base-T | |
| POE standard: IEEE802.3af/IEEE802.3at | |
| Consumption | Standby: Average current 140mA @ 12V |
| Communication: | |
| – Transmit current: 550mA @ 12V | |
| – Receive current: 420mA @ 12V | |
| Working Temperature Range | -40°F to 185°F (-40°C to +85°C) |
| Storing Temperature Range | -40°F to 257°F (-40°C to +125°C) |
