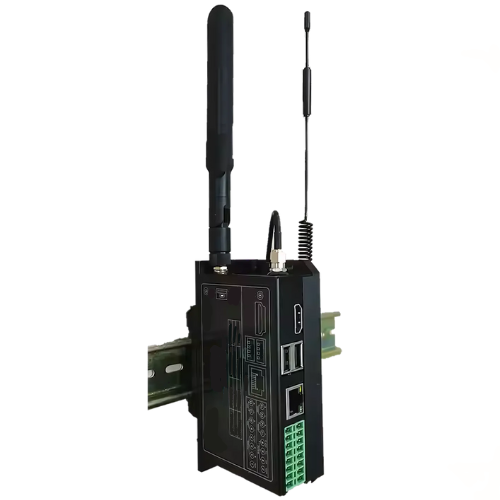

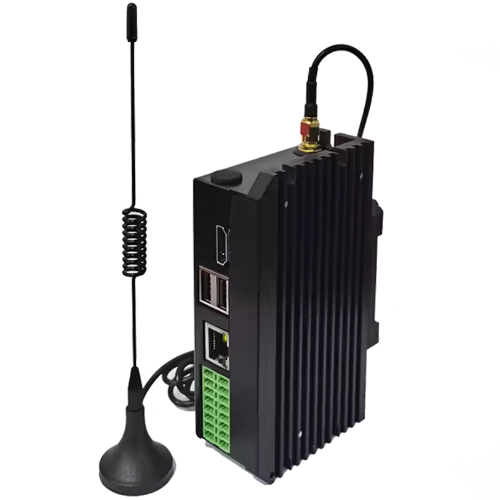

Industrial Lorawan Gateway with 4G USB Ethernet – Amuse Tech Solutions
Explore this gateway, it’s an industrial IoT solution with robust connectivity options, for automation and data acquisition in various applications.
Description
Features
- Raspberry Pi powered
- 4G LTE network
- Dual-band Wi-Fi
- Multiple interfaces
- Industrial-grade design
- Flexible memory options
- Supports GPS
- LoRaWAN optional
Technical Specifications
| CPU | Broadcom BCM2711, Quad-core A72 (ARM v8) @ 1.5 GHz |
| Memory | 2 GB (1 GB/4 GB/8 GB optional) LPDDR4 |
| Flash | 8 GB (16 GB/32 GB optional) eMMC |
| Operating System | Raspbian/ElastOS |
| Ethernet | Gigabit Ethernet x 1, (1-WAN or 1-LAN Configurable) |
| Cellular | 4G LTE or 3G or 2G or NB-IoT or CAT-M1 |
| Wi-Fi | Dual-band 2.4 GHz/5 GHz 802.11b/g/n |
| Bluetooth | Supported |
| GPS | Cellular Module built-in supported (Optional) |
| SIM | 1.8 V/3 V; drawer-type Nano card holder x 1 |
| Antenna | 4G: inside SMA x 1, WiFi/Bluetooth: inside SMA x 1 |
| Industrial Serial Port | RS-232 x 1, RS-485 x 1; ESD protection: 15 KV |
| I/O | 2-channel digital input DI, 2-channel digital/pulse output DO |
| USB | USB 2.0 x 2 for peripherals, USB-C x 1 for Power supply and Console |
| HDMI | HDMI 2.0 x 1, (Up to 4Kp60 video & audio output) |
| Additional Drive | 1 x M.2 socket with 2280 NVME SSD support |
| Watchdog Timer | Standalone Watchdog timer |
| Power Supply | Wide Range Voltages 9 to 36 V DC/1 A |
| Power Terminal | Unpluggable industrial terminal connection |
| Power Consumption | Less than 10 W (system) |
| Real-Time Clock (RTC) | Embedded RTC, power supply with a supercapacitor (Optional) |
| Protection | IP30 |
| Housing | Aluminum Heatsink |
| Cooling | Fanless cooling |
| Installation | DIN-rail, wall mounting |
| Storage Temperature | -22 °F to 167 °F (-30 °C to 75 °C) |
| Ambient Humidity | 5 to 95 % (non-condensing) |
| Operating Temperature | -13 °F to 158 °F (-25 °C to 70 °C) |
| Dimensions | 4.88 in x 2.99 in x 1.38 in (12.4 cm x 7.6 cm x 3.5 cm) |
