Industrial IOT LoRaWAN High Speed Gateway Rugged Body and Fan-Less Design – Amuse Tech Solutions
Rugged IoT gateway with Raspberry Pi CM4, 4G LTE, LoRaWAN, and Gigabit Ethernet for reliable data acquisition, automation, and edge computing in industrial applications.
Description
Overview
Amuse Tech Solutions Industrial IOT LoRaWAN High Speed Gateways is designed for industrial applications, leveraging the Raspberry Pi CM4 with a rugged, finless design for easy deployment in IoT projects. This device is ideal for data acquisition, automation control, and edge computing with support for 4G LTE/3G/2G, LoRaWAN, and Gigabit Ethernet. With its industrial-grade design, it offers high reliability and security, perfect for remote monitoring, smart grid systems, transportation management, and more.
Features
- Raspberry Pi CM4-powered industrial gateway
- Supports 4G LTE or LoRaWAN via mini PCIe
- Dual-band Wi-Fi for fast data transfer
- Finless design for wide temperature range
- Gigabit Ethernet for high-speed networking
- RS232/RS485 for industrial-grade data transfer

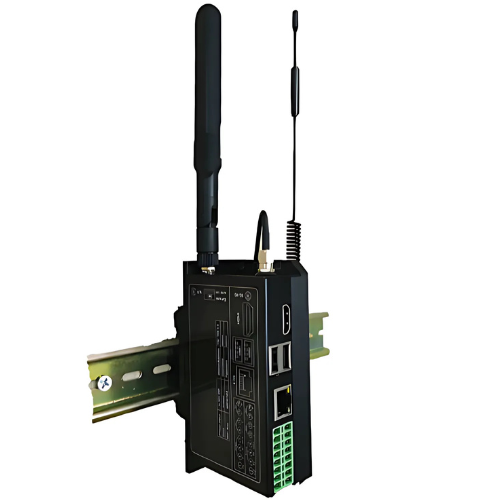

- DIN-rail or wall mount installation supported
Technical Specifications
| CPU | Broadcom BCM2711, quad-core A72 (ARM v8) 1.5 GHz |
| Flash Storage | 8 GB eMMC (16 GB or 32 GB optional) |
| Ethernet | 1 x Gigabit Ethernet (WAN or LAN configurable) |
| Cellular | 4G LTE, 3G, 2G, NB-IoT, CAT-M1 |
| Wi-Fi | Dual-band 2.4 GHz or 5 GHz |
| Bluetooth | Supported |
| GPS | Supported (optional) |
| Industrial Serial Ports | 1 x RS232, 1 x RS485 with 15 KV ESD protection |
| I/O | 2-channel digital input, 2-channel pulse output |
| USB | 2 x USB 2.0, 1 x USB-C (power & console) |
| HDMI | 1 x HDMI 2.0 (supports up to 4kp60) |
| Antenna | 4G: SMA, Wi-Fi or Bluetooth: SMA |
| Power Supply | 9 V to 36 V DC or 1 A |
| Power Consumption | Less than 10 W |
| Cooling | Finless aluminum heatsinks |
| Operating Temperature | -13 °F to 158 °F (-25 °C to 70 °C) |
| Storage Temperature | -22 °F to 167 °F (-30 °C to 75 °C) |
| Installation | DIN-rail, wall mounting |
| Dimensions | 4.88 in x 2.99 in x 1.38 in (12.4 cm x 7.6 cm x 3.5 cm) |
