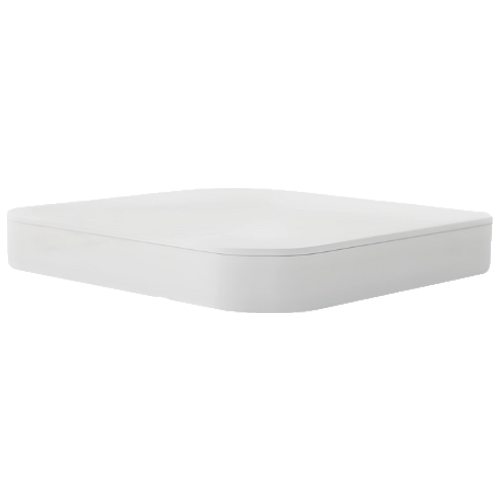

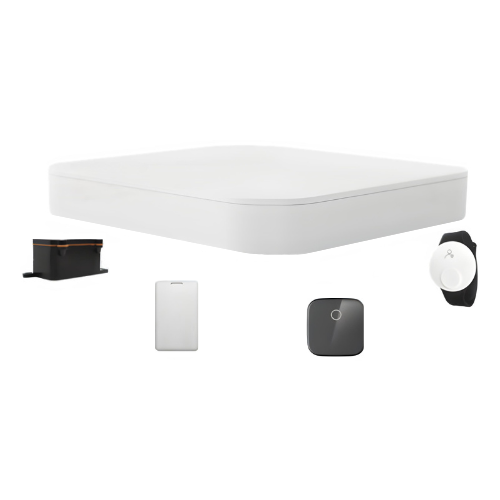

Indoor Positioning Locator Device with DDR4 1GB RAM Support – Amuse Tech Solutions
Indoor positioning locator with Wi-Fi Zigbee and Bluetooth 5.1 precise tracking with accuracy of 0.3 to 1M ideal for asset and personnel monitoring.
Description
Technical Specifications
| Category | Specifications |
| RAM | DDR4 1GB |
| CPU | PX30 Quad-core CortexA35 |
| eMMC | Up to 8GB |
| OS | Linux |
| Power Supply | USB type-C 5V or 2A |
| Reset Button | After Pressing The Reset Button for More Than 5 Seconds, The Locator will be Restored to Factory Settings. |
| Switch | On or Off power |
| Network Interface | CAT-5 or CAT-5E, POE Power Supply (44 to 57V), WAN or LAN |
| USB | USB2.0 |
| SIM Card | Micro SIM Card |
| Indicator LEDs | Power, BLE, Wi-Fi, LTE |
| Antenna Array | 4X4 Antenna Array |
| Installation Method | Ceiling |
| RTC | Real-time Clock Operated from On-board Battery |
| Operating Humidity | 10% RH to 90% RH |
| Cooling | Heat Dissipation Silicone or Aluminum |
| IP Rating | IP53 |
| Positioning Accuracy | 0.98 to 3.28 feet (0.3 to 1 meters old) |
| Detect Range | 360° Array Antenna, Angle of Arrival Measurement in the 2.4GHz Band |
| Current | 350mA at 5V |
| Connector | PCI Express |
| Debug | 1x Serial Console via UART-to-USB Bridge, Micro-USB Connector |
| Serial | 1 RS232 and 1 RS485 (2 wires) |
| Expansion Connector | 2X SPI, 2X UART, I2C, 4X GPIO |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C ) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C ) |
