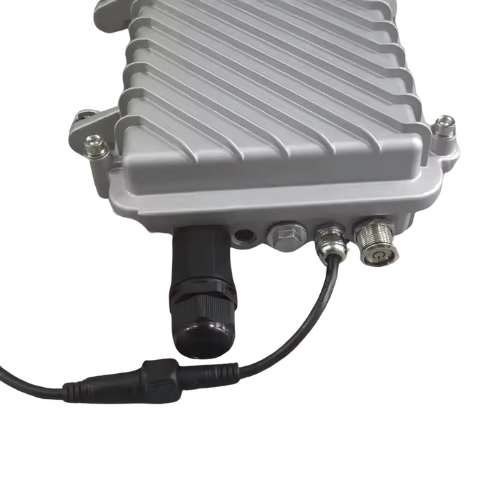

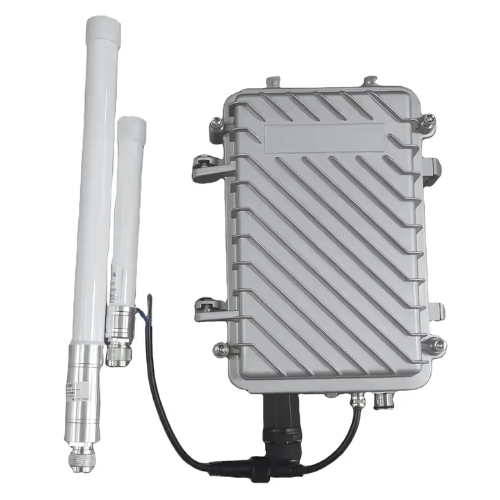

Indoor LoRaWAN Gateway with PoE WiFi & MQTT Support – Amuse Tech Solutions
Experience our 8-channel LoRaWAN gateway with PoE, Wi-Fi, MQTT support, and easy integration with Chirpstack, TTN, and more.
Description
Technical Specifications
| Type | Lora Gateway |
| Frequency | 433/470/868/915/920/923/865/864MHz |
| Transmitted Power | 27 dBm (Max) |
| Processor | MT 7628, DDR2 RAM 128 MB |
| Power Supply | DC 12V |
| Waterproofing Grade | IP 65 |
| POE Power Supply | POE (IEEE802.3 af),36~57 V |
| Communication Distance | 15 KM |
| Wifi Frequency | 2.4 GHZ (802.11b/g/n) |
| Lora Characteristics | SX 1302 |
| Interface | Ethernet, SD, USB, DC, ANT |
| Product Type | Half-Duplex 8-Channel Indoor LoRaWAN Gateway |
| Protocol | LoRaWAN 1.0.3 (Backward Compatible) |
| Front-End Chip | Integrated SX1302 |
| Wi-Fi | Built-in 2.4 GHz Wi-Fi (AP Mode For Easy Configuration) |
| Power Supply | PoE (Power Over Ethernet) |
| Uplink Backup | Multi-link Backup Over Ethernet, Wi-Fi, and Cellular (Optional LTE Cat 4) |
| Multi-WAN Support | Network Switching Between Multiple Networks (Ethernet, Wi-Fi, Cellular) |
| Operating System | OpenWRT with Web UI for Easy Configuration and Monitoring |
| MQTT Support | Built-in MQTT or External MQTT Servers, with or without TLS Certificates |
| Platform Integration | Supports Chirpstack, TTN, Tencent Cloud IoT, and LoRa Web Servers |
| LoRa Server | Built-in LoRa Server for Easy Gateway Application Development and Setup |
| Weight | Â 0.22 lbs (0.100 kg) |
