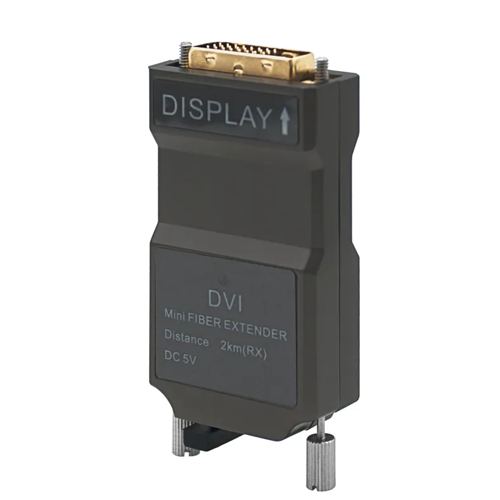

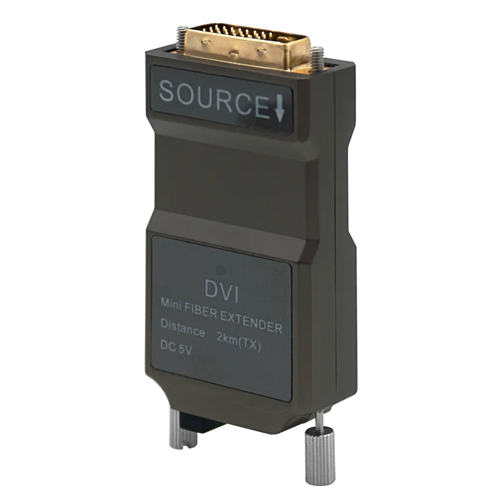

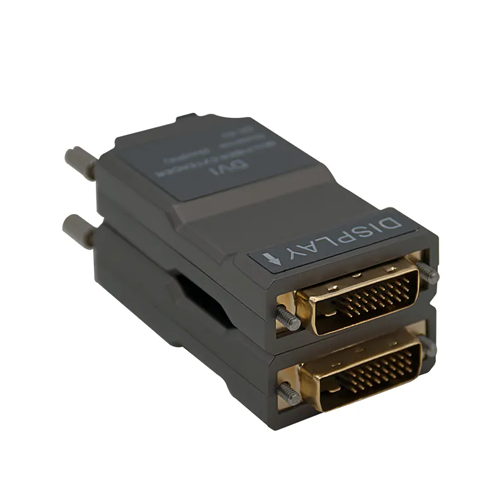

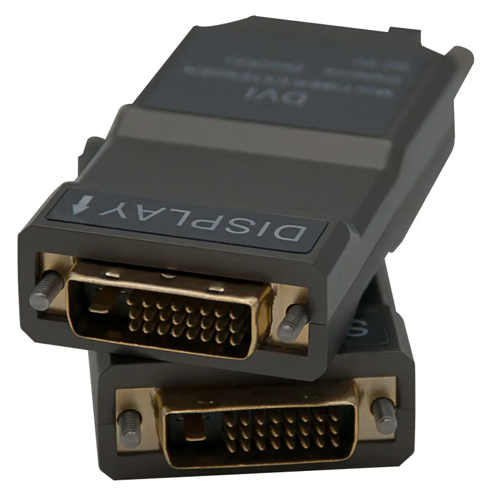

High-Speed DVI Fiber Optic Converter, 10 Gbps Bandwidth – Amuse Tech Solutions
Converts DVI signals to fiber with 10 Gbps bandwidth, 297 MHz pixel clock, and <1.5 W power. Supports 1920 × 1200 resolution.
Description
Features
- Support resolution of 1920 × 1200 at 60 Hz backwards compatible
- International standard HDCP 1.4
- EDID pass-through mode
- Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0
- Support DDC CEC HPD signal
- Single and multi-mode compatible
- Multi-mode: 0.62 mi (1 km)
- Single mode: 1.24 mi (2 km)
- Customizable up to 12.42 mi (20 km)
- Delay time <2 ms
- Supports hot-swappable signals
- Plug and play, no setup required

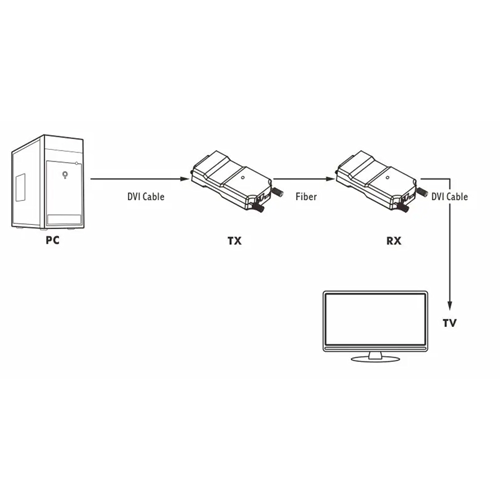

- Equipment used in pairs
- It has a transmitter and receiver to distinguish
Technical Specifications
| Optical device index | |
| Wavelength | 1310 nm to 1550 nm |
| Speed | 10 Gbps |
| Emitted Optical Power | >-5 dB |
| Emission Sensitivity | >-14 dB |
| Light Port | LC |
| Video Indicators | |
| Video Bandwidth | 10 Gbps |
| Resolution | 1920 × 1200 at 60 Hz backward compatible |
| Pixel Clock | 297 MHz |
| Physical Interface | DVI Male (24 + 1) |
| Other Indicators | |
| Operating Temperature | -4 °F to 167 °F (-20 °C to 75 °C) |
| Power Supply Method | 5 V ±5% |
| Power Consumption | <1.5 W |
| Power Physical Interface | Micro-USB |
| Equipment Size | 3.62 in × 1.61 in × 0.66 in (92 mm × 41 mm × 17 mm) |
