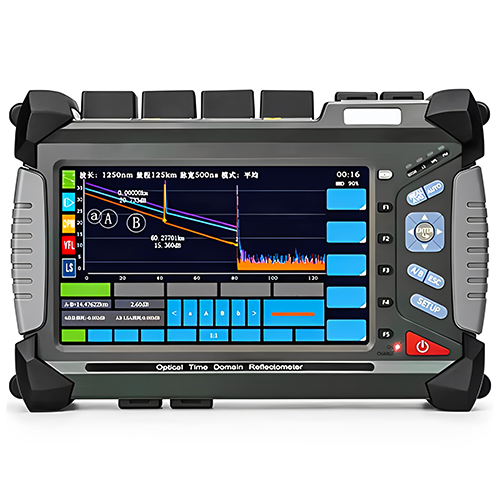

High Resolution OTDR with Precision and Reliability – Amuse Tech Solutions
Compact fiber optic tester with dual wavelengths, precise measurements, large storage, touchscreen display, long battery life, and durable design
Description
Features
- High-Resolution Touchscreen
- Long Battery Life
- Accurate Fiber Measurements
- Compact and Lightweight Design
Technical Specifications
| Fiber Type | Single Mode |
| Wavelength Range | 1310 nm / 1550 nm |
| Dynamic Range | 42 / 40 dB |
| Event Dead Zone | ≤2.62 ft (0.8 m) |
| Attenuation Dead Zone | ≤19.69 ft (6 m) |
| Measuring Distance | 1.86 mi to 524934 ft (3 km to 160 km) |
| Reflection Measurement Accuracy | ±3dB |
| Data Storage | ≥2000 Test Curves |
| Screen Type | 5.8-in color touchscreen |
| Battery Working Time | ≥10 hours |
| Test Range | 1640 ft to 839895 ft (500 m to 256 km) |
| Test Pulse Width | 5 ns, 10 ns, 50 ns, 160 ns, 320 ns, 500 ns, 1000 ns, 5000 ns, 10000 ns, 20000 ns |
| Ranging Accuracy | ± (2.46 ft + sampling interval + 0.005% × test distance) |
| Loss Accuracy | ±0.05 dB/dB |
| Optical Port Type | FC / PC (interchangeable SC, ST) |
| Data Interface | 10 M / 100 M Ethernet port |
| VFL Output | ≥5 mW |
| Light Source Output | ≥-5 dBm |
| Optical Power Meter | +26 dBm to –50 dBm (Replaceable +6 dBm to –70 dBm) |
| Power Supply | AC/DC adapter: AC 100 V to 240 V, 50/60 Hz Lithium battery: 7.4V / 6700mAh, Lithium ion |
| Relative Temperature | 0% to 95% (No condensation) |
| Operating Temperature | 23 °F to 122 °F (-5 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Dimension | 11.61 in × 7.48 in × 7.68 in (29.5 cm × 19 cm × 19.5 cm) |
| Weight | ≤2.43 lb. (1.1 kg) |
