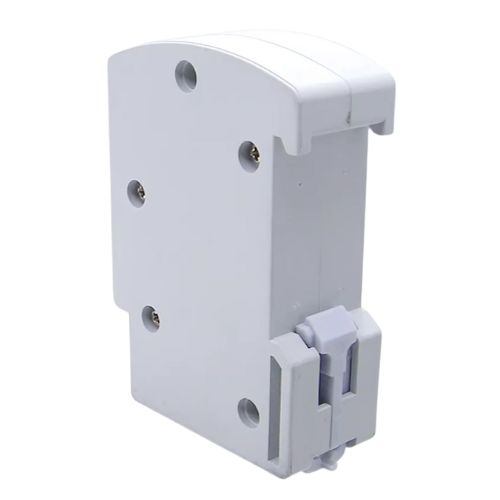

High Pressure Impulse Protection Device with Low Insertion Loss – Amuse Tech Solutions
Efficient high pressure impulse protection with low voltage residual, fast response, and excellent transmission performance and easy installation.
Description
Features
- As to the principles of discharge, clamping and voltage stabilization to achieve efficient & reliable high pressure impulse function and accurate clamping voltage
- Multistage protection, low Residual voltage
- Convenient installation and simple maintenance.
- Low-volume, excellent transmission performance,
- Fast response, low insertion loss.
- Large intake capacity and long lifetime
Technical Specifications
| Working Voltage | Â 5V |
| Rated Current | 850 mA |
| Nominal Discharge Current (Un) | 5 kA |
| Max. Discharge Current (Imax) | 10 kA |
| Voltage Protection Level (Up) | ≤15V |
| Transmission Rate (Bps) | 100M/1000M |
| Protected Core | 1 lines to 8 lines |

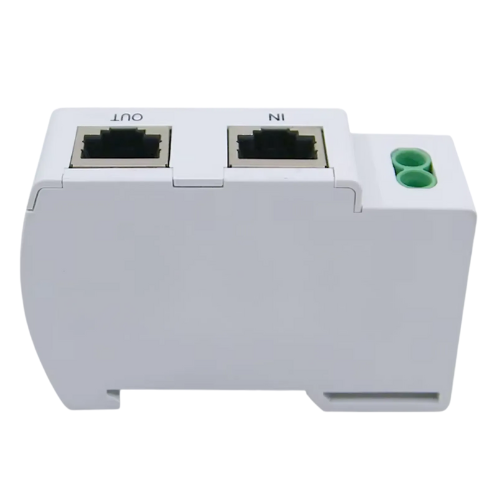

| Port | Â RJ45 |
| Power | 48V |
| Network Signal | Â 5V |
| Rated Current | Â 850 mA |
| Transmission Rate | 100M/1000M |
| Insertion Loss | ≤0.2 dB |
| Response Time | ≤1 ns |
| Temperature | -40°F to 176°F (-40°C to +80°C) |
| Relative Humidity | <90 % |
| Dimensions (L×W×H) | 3 in × 2 in × 1 in (7.5 cm × 5.1 cm × 2.5 cm) |
| Net Weight | 3.05 oz (100 g) |
