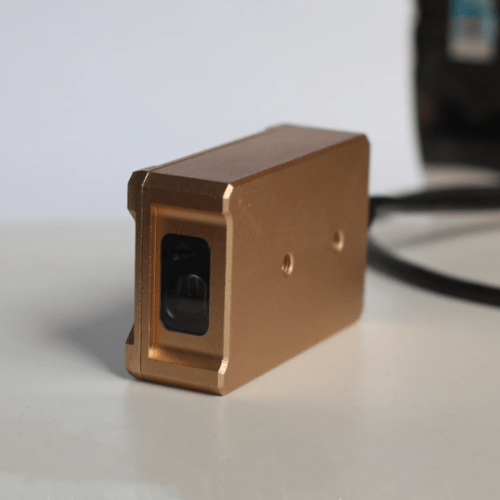

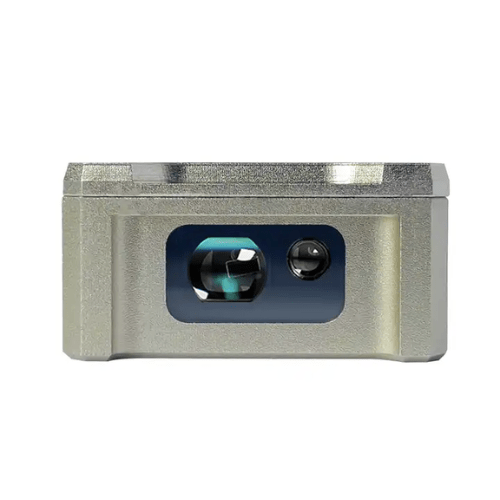

High-Precision Sensor, 0.2-5m Range, 0.1mm Resolution, 7-36V – Amuse Tech Solutions
High-precision sensor with 0.2-5m range, 0.1mm resolution, and <1 ms response time. Operates on 7-36V with a wide temperature range of -40°F to 185°F
Description
Technical Specifications
| Measured Distance | 7.8 in (0.2 m) to 196.8 in (5 m) |
| Range Resolution | 0.003 in (0.1 mm) |
| Response Time | <1 ms |
| Power Supply Voltage | 7 V to 36 V |
| Wavelength | 658 mm to 695 mm |
| Temperature | -40 ºF to 185 ºF (-40 ºC to 85 ºC) |
| Size | 3.5 in x 2.5 in x 1.3 in (90 mm x 65 mm x 35 mm) |
| Weight | 0.3 lb (158 gm) |
