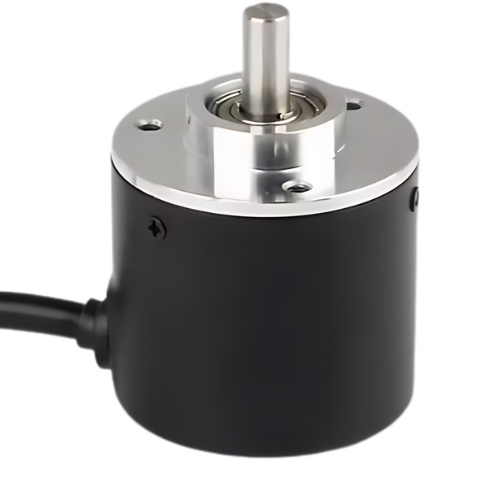

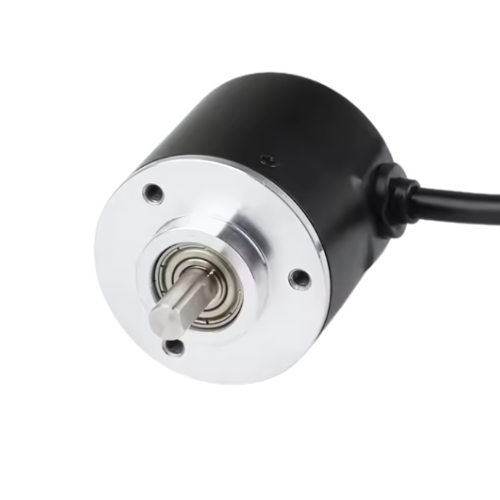

High Precision Rotary Encoder, durable, DC5V-30V, 0-100kHz, 10-6000 Pulse.
Description
Overview
Amuse Tech Solutions High Precision Rotary Encoder, durable, DC5V-30V, 0-100 kHz, 10-6000 Pulse. Incremental shaft encoders also known as Incremental Rotary Shaft Encoders are ideal for monitoring sensing a rotating shaft, or even linear position sensing when used in conjunction with ball screws etc, rollers. When integrated into a control system, they provide speed, position, acceleration & direction feedback data to the system. Incremental encoders produce a series of pulses directly proportional to the movement of its shaft.
Â
Technical Specifications
| Slew Speed | 6000 r/min |
| Shaft Load | ≤ 10 N |
| Protection Class | IP63 |
| Termination | Side Entry Cable or Rear Entry Cable |
| Supply Voltage | DC 5 V /8 to 26 V / 12 V to 30 V / 12 V |
| Output Model | Voltage or Push-pull or Open collector or Line driver |
| Frequency Response | 0 kHz to 100 kHz |
| Current Requirement | ≤ 60 mA |
| Index Length | 1 T |
| Output Phase | A, B, Z /A, -A, B, -B, Z, -Z |
| External Diameter | 1.496 in (3.8 cm) |
| Shaft Diameter or Shaft Hollow Diameter | 0.236 in or 0.197 in (0.6 cm or 0.5 cm) |
| Operating Temperature | −40 °F to 185 °F (-40 °C to +85 °C) |
