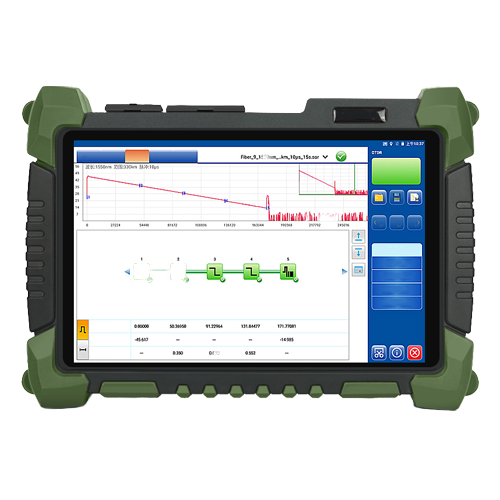

High Precision Fiber Optic Tester with Dual Wavelength – Amuse Tech Solutions
High-precision OTDR for fiber optic testing, offering excellent dynamic range, minimal event dead zones, and an intuitive touchscreen interface.
Description
Features
- High-precision measurements
- Dual-wavelength capability
- Extended dynamic range
- Compact and portable
Technical Specifications
| Maximum Number of Sampling Points | 256000 |
| Measurement Time (s) | 5,15,30,45,60,90,120,180, customize |
| Linearity (dB/dB) | ±0.05 |
| Loss Resolution (dB) | 0.001 |
| Refractive Index Range | 1.000000 to 2.000000 |
| Optical Light Source (OLS) | >5 dBm, same as OTDR wavelength |
| Light Source Adjustment | CW/270HZ/1KHZ/2KHZ/1KHZ+flash/2KHZ+flash |
| Power Range | -50 dBm to +30 dBm |
| Display | 10.1 in 1280 x 800 high brightness color TFT screen |
| Touch | Multi-touch capacitive touch screen |
| Business Interface | 2 pcs, customized PCI-Ex1 interface |
| USB | 2 pcs, USB TypeAx2, USB TypeCx1 |
| TF Card Slot | 1 pc |
| SIM Card Slot | 1 pc |
| 3.5mm Headphone Jack | 1 pc, 10/100/1000BASE-T |
| Ethernet Interface | 1 pc, 5.5/0.1 in (.25 cm), positive inside and negative outside |
| DC Power Interface | 2 pcs, USB TypeCx2 |
| Module Interface | Write: sor, tor, pdf, png, csv; Read: sor, tor, pdf, png, csv |
| Supported Formats | FDD-LTE/TDD-LTE/WCDMA/TD-SCDMA/GSM/EDGE |
| Cellular Network | 2.5G to 5G, 802.11a/b/g/n/ac |
| Wi-Fi | BT4.2 (BR/EDR+LE) |
| Bluetooth | GPS/A-GPS/GLONASS/BD |
| Positioning Technology | Simplified Chinese/English/Other languages can be customized |
| Language | 0.02 in (0.1 cm) |
| Minimum Point Spacing (m) | ± (0.8+0.005% * distance + sampling resolution) |
| Distance Uncertainty (m) | 800 nm to 1700 nm |
| Response Wavelength | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm |
| Calibration Wavelength | 650 ±20 nm |
| Wavelength | CW/Flash (About 2 HZ) |
| Accuracy | 5.5 hours |
| Charging Time | >15 hours |
| Operating Time | -10°F to +122°F (-10°C to +50°C) |
| Operating Temperature | 11.3 in × 7.5 in × 2.9 in (28.7cm × 19cm × 7.4cm) |
| Dimensions | About 4.1 lbs (1861 g) |
