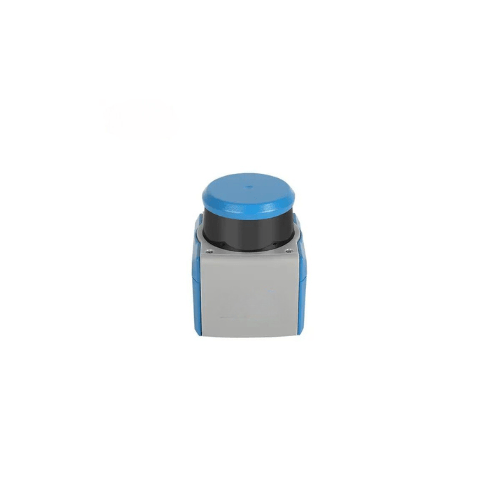

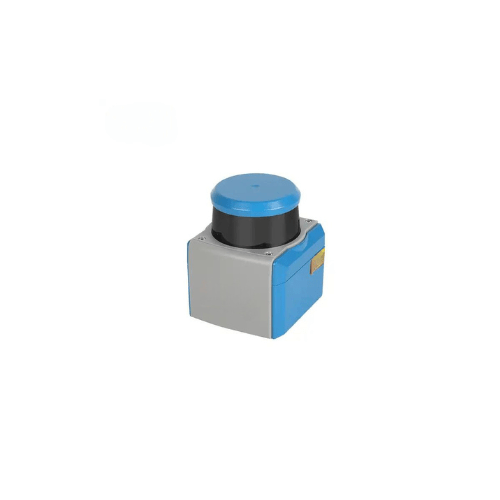

High-Precision 50m LiDAR Sensor, 360° FOV, 0.06° Resolution, IP66 – Amuse Tech Solutions
Advanced LiDAR sensor with 360° FOV, 50m range, 0.06° resolution, IP66. Class 1 safety, ideal for precise distance measurement in varied conditions
Description
Technical Specifications
| Laser wavelength | 905 ± 20 nm |
| Laser Safety Level | Class 1 (IEC 60825 1 2014) |
| Laser Channel | 1 |
| Beam divergence | Longitudinal 5.8 mrad
Transversal 2.6 mrad |
| Field of view (Horizontal) | 360° |
| Angle resolution (Horizontal) | 0.06° at 10 Hz, 0.09° at 15 Hz 0.12° at 20 Hz, 0.15° at 25 Hz |
| Scanning Frequency | 10 Hz to 25 Hz (Default 15Hz) |
| Scanning Range (based on reflectivity) |
0.2 m to 5 m at 2% reflectivity |
| 0.2 m to 15m at 10% reflectivity | |
| 0.2 m to 50m at 80% reflectivity | |
| Absolute Accuracy | <±1.58 in (< ±40 mm) |
| Repeat accuracy | <0.79 in (< 20 mm) |
| Distance resolution | 1 ms |
| Signal strength | 0 to 60000 |
| Scanning rate | 60 K |
| Horizontal error (Horizontal angle) |
±0.5 ° |
| Operating voltage | DC 12 V to 30 V |
| Power consumption | 7 W at 15 Hz |
| Protection Grade | IP 66 |
| Ambient light limit | <120000 LUX |

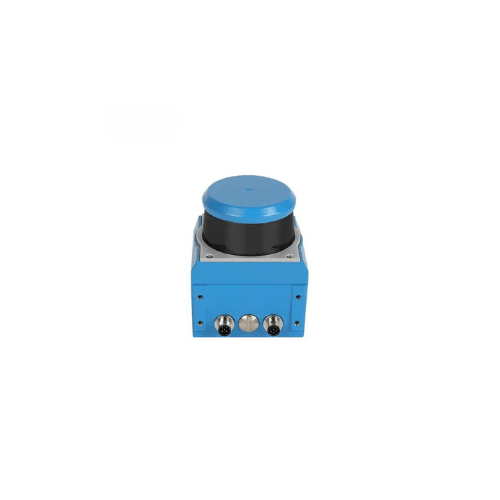

| Cable Connection (Standard 2 m, Optional 4 m) |
M 12, 5 Pin (Power Supply) M 12, 8 Pin (100 Mbps Ethernet) |
| Operating temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage temperature | -22 °F to 158 °F (-30 °C to 70 °C) |
| Mechanical dimensions | 3.74 in × 3.82 in × 4.57 in (95 mm x 97 mm x 116 mm) |
| Weight | 1.98 lb (900 g) |
