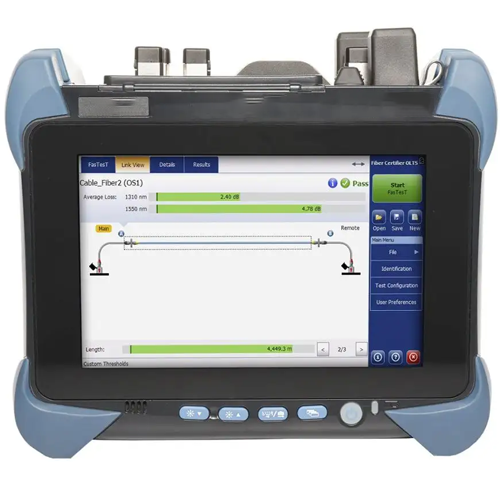

High Performance Optical Time Domain Reflectometer – Amuse Tech Solutions
Advanced optical testing tool with flexible connectivity, EF compliance and powerful battery for precise fiber diagnostics.
Description
Features
- Flexible connectivity options
- EF compliance support
- iOLM one-touch testing
- Powerful battery technology
Â
Technical Specifications
| Fiber | SM (single mode) |
| Connector Type | FC |
| Display | Touch screen, color, 800 to 480 TFT, 7 in (17.8 cm) Two USB 2.0 ports |
| Interfaces | RJ-45 LAN 10 to 1000 Mbit/s Fiber inspection probe connector port (video) Built-in Bluetooth and Wi-Fi (optional) |
| Storage | 8 GB internal memory (flash); 16 GB internal memory (flash), optional |
| Batteries | Rechargeable lithium-ion batteries 3 hours of operation as per Telcordia to Bell core TR-NWT-001138 |
| Power Supply | AC/DC adapter, input 100 to 240 VAC, 50 to 60 Hz 2 A max, output 24 VDC, 90 W |
| Computer | Intel ATOM processor Windows Embedded Standard operating system |
| Wavelength (nm) | 1310 nm to 1550 nm |
| Dynamic Range (dB) | 36 dB to 35 dB |
| Event Dead Zone | Single mode: 2.3 ft (0.7 m) |
| Attenuation Dead Zone | Single mode: 9.8 ft (3 m) |
| PON Dead Zone | 114.8 ft (35 m) |
| Pulse Width (ns) | Single mode: 3 to 20,000 |
| Launch Conditions | EF-compliant |
| Linearity (dB/dB) | ±0.03 |
| Loss Threshold (dB) | 0.01 |
| Loss Resolution (dB) | 0.001 |
| Sampling Resolution | Single mode: 0.04 to 10 m (0.13 to 32.8 ft) |
| Sampling Points | Up to 256,000 |
| Distance Uncertainty | ± (0.75 to 0.0025 × distance + sampling resolution) |
| Measurement Time | User-defined (maximum: 60 minutes) |
| Reflectance Accuracy (dB) | ±2 |
| Typical Real-Time Refresh | 4 Hz |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Dimension | 7.5 in x 9.96 in x 2.6 in (19 cm to 25.2 cm to 6.6 cm) |
| Weight (With Battery) | 52.91 oz (1.5 kg) |
