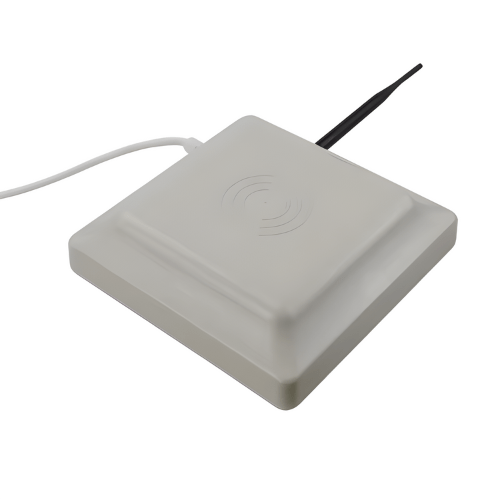

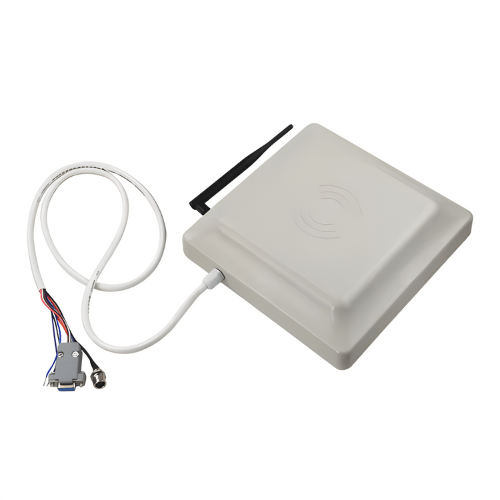

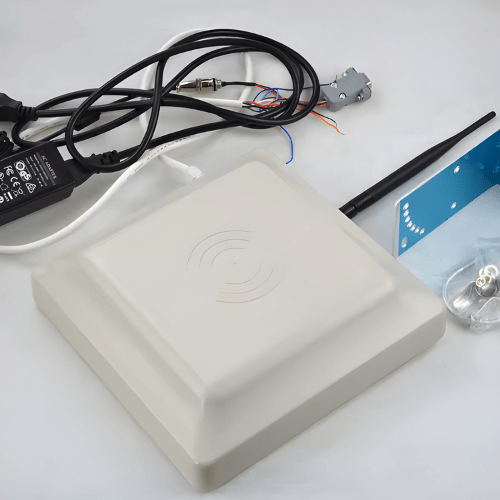

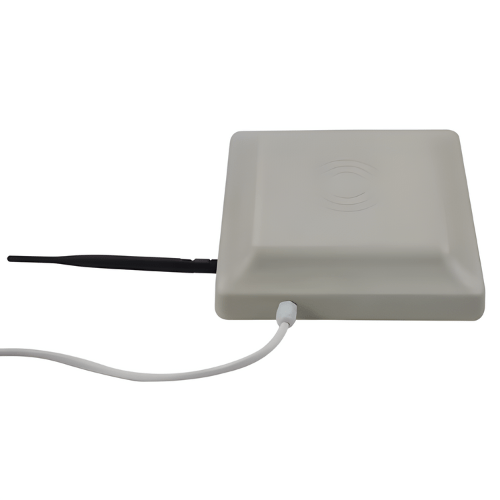

High Performance Long Range UHF RFID Reader with Wireless Connectivity – Amuse Tech Solutions
Efficient UHF RFID reader with long-range capability, built-in antenna, and WIFI. Reads and writes tags from 3.2 ft to 19.6 ft, supports various protocols.
Description
Overview
Amuse Tech Solutions Long Range UHF RFID Reader WIFI Original Wireless UHF Reader belongs to ISO18000-6C & EPC Class 1 Gen2 protocol which can read and write all UHF RFID EPC tags in a wireless connection. With built-in RFID antenna and ABS material, it can be installed outdoor for many RFID systems.
Technical Specifications
| Frequency | Worldwide 840 MHz to 960 MHz, US 902 MHz to 928 MHz, EU 865 MHz to 868 MHz |
| Protocol | ISO or IEC 18000-6C and 6B, EPC Class1 Gen2 |
| Read & Write Range | Read 3.2 ft to 19.6 ft (1 m to 6 m) adjustable, tag and environment dependent |
| Antenna | Built-in 8 dBi Circular polarization antenna |
| Transmit Power | 0 dBm to 30 dBm adjustable |
| Working Mode | Read & write supported |
| Read Prompt | Buzzer |
| Anti-Collision | Support multiple tags reading |
| Reading Speed | Max. 100 tags per s |
| Software Kits | Provide free Demo for testing and SDK for development |
| Software Compatibility | Win XP, Win7, Win8 or Win10 |
| Customized Service | Ethernet or WIFI port; Cable meters; Relay; External Antenna; Module; Led indicator; Circular Antenna; |
| Material | ABS Waterproof |
| Mounting | Bracket |
| Data Interface | WIFI, RS 232 or UART |
| Power Supply | Single +9 V to 12 V DC |
| Operating Humidity | 20 % to 90 % RH |
| Operating Temperature | 14°F to 140°F (-10 ℃ to +60 ℃) |
| Size | 9.25 in × 9.25 in ×2.24 in (235 mm x 235 mm x 57 mm) or 10.24 in × 10.24 in × 1.77 in (260 mm x 260 mm x 45 mm) |
