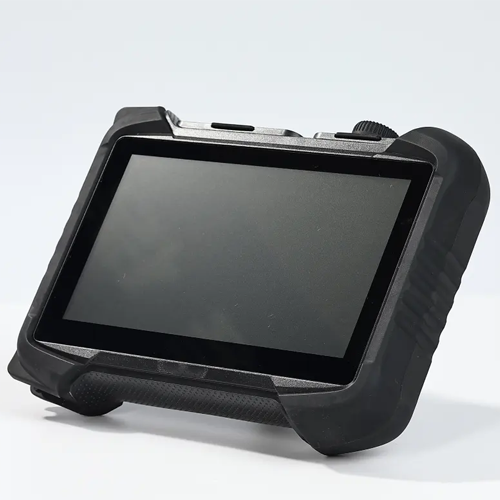

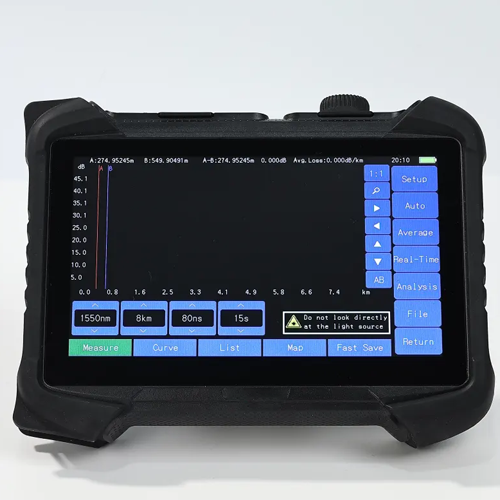

High Dynamic Range Optical Reflectometer with Touch Screen – Amuse Tech Solutions
High precision Optical Time Domain Reflectometer for accurate fiber testing. Portable, efficient, and easy to operate for network diagnostics.
Description
Features
- Full-touch capacitive screen
- High dynamic range capability
- Minimal event blind area
- High-capacity polymer battery
Â
Technical Specifications
| Application | FTTN |
| Use | Factory, lab, college, outdoor |
| Fiber Type | Single Mode |
| Network | Wired LAN, Wifi, 4G, 3G, 5G |
| Type | FTTX |
| Language | Chinese, English (contact us for more) |
| Optical Output Port | FC/UPC (SC/UPC optional) |
| Power Supply | AC/DC Adapter: Input: AC 100 to 240V, 50/60Hz Output: DC 5V/2A Internal lithium battery: 3.7V, 4600mAh |
| Working Wavelength | 1310/1550/1625/1650±20nm |
| Maximum Dynamic Range | 28 dB |
| Event Dead Zone | 9.8 ft (3 m) |
| Attenuation Dead Zone | 26.2 ft (8 m) |
| Accuracy | ± (2.5 ft + distance x 0.0025% + sampling period), (m) |
| Resolution | 0.08 to 105 ft (0.025, 0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16, 32 m) |
| Distance | 0.25 to 318 miles (0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512 km) |
| Pulse Width | 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240, 20480 ns |
| Maximum Number of Sampling Points | 256k |
| Linearity | 0.03 dB/dB |
| Loss Resolution | 0.001 dB |
| Refractive Index Setting Range | 1.00000 to 1.99999 (0.00001 stepping) |
| Distance Unit | Kilometers, meters, thousands of feet, feet |
| Display | 800 x 480, 7-inch TFT Color LCD (capacitive touch screen) |
| Battery Working Time | Low brightness, standby time ≥ 6 hours |
| Relative Humidity | 5 % to 95 %, no condensing |
| External Port | USB Type C, Micro SD |
| Weight | About 24.69 oz (0.7 kg) |
| Dimension | 7.9 in x 6.1 in x 1.5 in (20 cm x 15.5 cm x 3.8 cm) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) (battery charging: 41 °F to 104°F or 5 °C to 40°C) |
