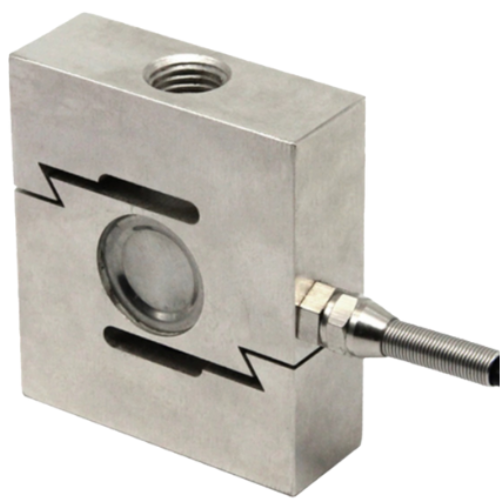

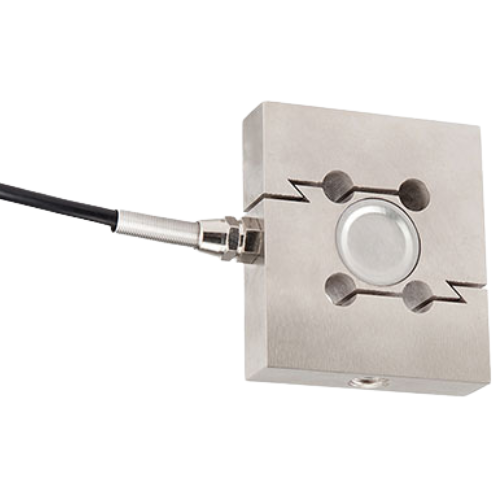

High Accuracy Robotic Arm Tension Compression Weighing Gravity Sensor- Amuse Tech Solutions
Robotic arm tension compression sensor with 0.1 to 20 t load capacity, 2.0 mV/V sensitivity, high precision, and temperature stability.
Description
Technical Specifications
| Rated Load | 0.11 ton to 22.05 ton (0.1 t to 20 t) |
| Sensitivity | 2.0 mV/V |
| Comprehensive Precision | 0.02 to 0.05 % F.S. |
| Creep | ±0.02 % F.S. / 30 min |
| Zero Output | ±1 % F.S. |
| Input Resistance | 380 ± 10 Ω |
| Output Resistance | 350 ± 3 Ω |
| Insulation Resistance | > 5000 MΩ |
| Safe Load Limit | 150 % F.S. |
| Bridge Voltage | Recommendation 10 V DC |
| Material | Alloy Steel |
| Load Cell Mode Of Connection | Input+: Red, Input-: Black, Output+: Green, Output-: White |
| Temperature Effect On Zero | ±0.02 % F.S. / 18 °F (±0.02 % F.S. / 10 °C) |
| Temperature Effect On Output | ±0.02 % F.S. / 18 °F (±0.02 % F.S. / 10 °C) |
| Operating Temperature Range | -4 °F to 149 °F (-20 °C to 65 °C) |
| Single Package Size | 5.91 in x 5.91 in x 3.15 in (15 cm x 15 cm x 8 cm) |
| Single Gross Weight | 17.63 oz (500 g) |
