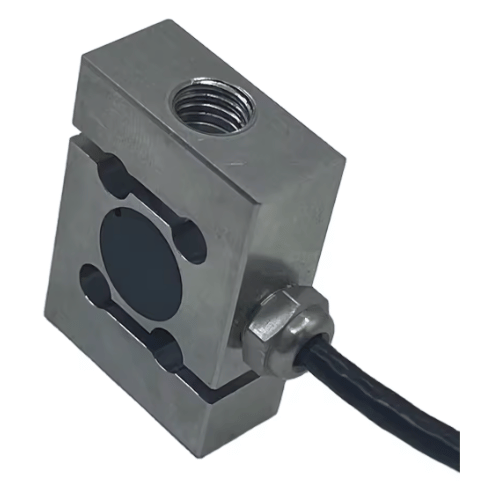

High Accuracy Load Cell 50 N to 2KN with IP66 Rating for Industrial Application – Amuse Tech Solutions
High-precision load cell with 0.05% accuracy, 2 mV/V sensitivity, and IP66 protection, suitable for a temperature range of -40 °F to 185 °F.
Description
Overview
Amuse Tech Solutions high accuracy load cell 50 N to 2 KN with IP66 rating for industrial application force sensor can measure both tension and compression forces and is suitable for a variety of static and dynamic measurement applications. The high output signal of 2 mV/V ensures the sensor has an excellent signal-to-noise ratio. Even very small forces can be accurately measured. It has built-in overload protection, even if the equipment fails, it can protect itself.
Technical Specifications
| Accuracy | 0.05 % |
| Capacity | 50 N to 2 KN |
| Sensitivity | 2 mV/V |
| Creep | 0.05 % / 30 min |
| Zero balance | 0.05 mV/V |
| Recommended excitation voltage | 5 V |
| Safe overload | 150 % of Emax |
| Input resistance | 350 ± 30 Ω |
| Output resistance | 350 ± 3 Ω |
| IP grade | IP66 |
| Normal temperature range | 14 °F to 104 °F (-10 °C to 40 °C) |
| Service temperature range | 14 °F to 104 °F (-10 °C to 40 °C) |
| Limit temperature range | -40 °F to 185 °F (-40 °C to 85 °C) |
