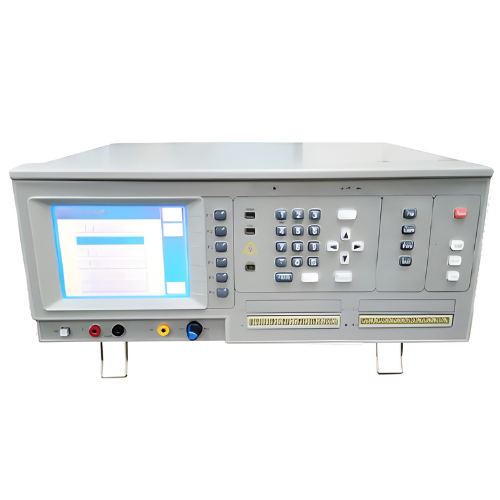

Harness Wire Tester with Adjustable Scanning Modes Available – Amuse Tech Solutions
Advanced cable continuity tester offering auto/manual scanning, insulation and leakage tests, high precision and extensive memory storage features.
Description
Features
- Adjustable Scanning Modes Available
- High Voltage Insulation Testing
- Clear LED Display Alarm
- Extensive Measurement Connections
- Compact Build and Durable
Technical Specifications
| Scanning Mode | Auto / Manual Switchable |
| Measurement Frequency and Signal | 100 KHz to 100 KHz, 1 VAC |
| Low Voltage Measurement Signal | 5 VDC, 50 mA Max, ±0.5% |
| High Voltage Insulation Test | DC 5 V to 1000 V |
| High Voltage (Leakage Current) Test | AC 100 V to 700 V |
| Display/Alarm | 320 x 240 dpi graphic LED display |
| Measurement Points | 128 PIN |
| Measurement Connection | Optional 128 / 256 / 512 Test Points (other models optional) |
| Hipot Calibration | ± Output |
| Auto Pin Search Jack | Yes |
| Front Panel Buttons | Sys key/Fast key/Edit key/Function key |
| Interface | RS-232 Port, Remote Control Port (Optional) |
| Power Supply | 115 / 230 VAC ±10%, 50 Hz |
| File Storage | Memory 512 KB, can save max 61 files |
| Temperature/Humidity | 59 °F to 95 °F (15 °C to 35 °C) RH ≤ 75% |
| Cable Request | Max. 1 μF |
| Dimension | 16.7 in x 7.5 in x 13.8 in (42.5 cm x 19 cm x 35 cm) |
| Weight | Around 33 lbs. (15 kg without fixture) |
