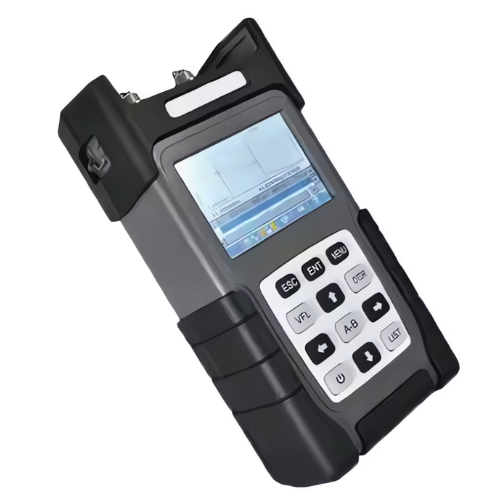

Handheld OTDR with Two Wavelengths and Multifunctional Use – Amuse Tech Solutions
Handheld OTDR for fiber measurement. Accurately detects faults, measures length and loss, ideal for construction, maintenance, and production testing.
Description
Features
- Accurate Fault Detection
- Measures Length and Loss
- Ideal for Maintenance
- Suitable for Production Testing
Technical Specifications
| Type of Optical Fiber | Single mode |
| Center Wavelength | 1310 nm/1550 nm (±20nm) |
| Maximum Dynamic Range | 36/35 dB / 30/28 dB / 28/26 dB |
| Maximum Test Range | 62.14 miles (100 km) / 49.71 miles (80 km) |
| Event Blind Zone | 4.92 ft (1.5 m) |
| Attenuation Blind Zone | 32.8 ft (10 m) |
| Display Type | 3.5 in, color LCD, touch screen operation |
| Optical Interface | FC/UPC (Interchangeable SC, ST) |
| Pulse Width | 10, 30, 50, 100, 275, 500, 1000, 5000, 10000ns |
| Range Accuracy | ± (3.28 ft + sampling interval + 0.005% × distance) |
| Attenuation Measurement | ±0.05 dB/dB |
| Reflection Measurement | ±4 dB |
| Data Storage | ≥ 1000 test curves |
| Communication Interface | USB/RS-232 |
| Power Supply Mode | AC / DC adapter: AC: 100V to 240V (1.5A), 50 to 60Hz DC: 18V to 20V (2A) |
| Battery Operation Time | ≥ 10 hours |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Dimensions | 8.2 in × 4.3 in × 2.2 in (20.8 cm × 11 cm × 5.6 cm) |
| Weight | ≤ 35.27 oz (1 kg) |
