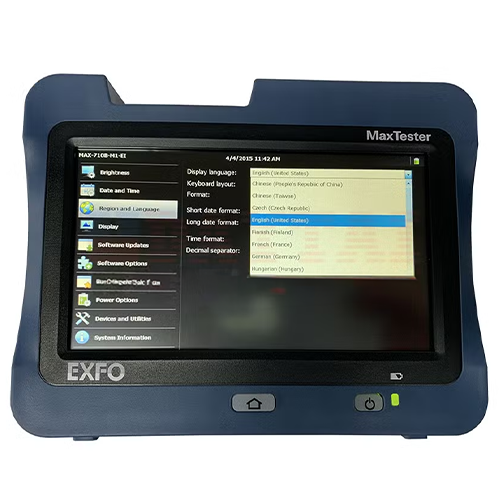

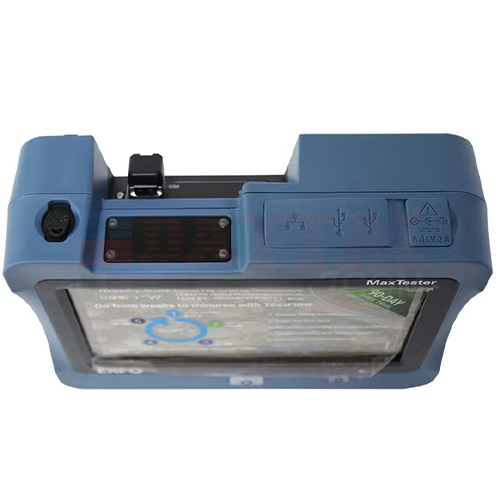

Handheld OTDR with Rugged Design and Enhanced Touchscreen – Amuse Tech Solutions
Handheld OTDR with a large touchscreen, durable design, and extended battery life, ideal for fiber optic installation and troubleshooting
Description
Features
- Long battery autonomy
- High dynamic range
- Compact, rugged design
- Outdoor-enhanced touchscreen
Technical Specifications
| Display | 7-inch outdoor-enhanced touchscreen (17.8 cm), 800 x 480 TFT |
| Interfaces | Two USB 2.0 ports; RJ-45 LAN 10/100 Mbit/s |
| Storage | 2 GB internal memory (approximately 20,000 OTDR traces) |
| Battery | Rechargeable lithium-polymer; up to 12 hours of operation as per Telcordia TR-NWT-001138 |
| Power Supply | AC/DC adapter; input: 100-240 VAC, 50-60 Hz; output: 9-16 V DC, 15 W minimum |
| Wavelength | 1310/1550 nm |
| Dynamic Range | 30/28 dB |
| Event Dead Zone | 3.3 ft (1 m) |
| Attenuation Dead Zone | 13.1 ft (4 m) |
| Distance Range | 0.06 to 99.4 miles (0.1 to 160 km) |
| Pulse Width | 5 ns to 20 µs |
| Linearity | ±0.05 dB/dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Sampling Resolution | 0.13 to 16.4 ft (0.04 to 5 m) |
| Sampling Points | Up to 256,000 |
| Distance Uncertainty | ±(0.75 + 0.005% x distance + sampling resolution) |
| Measurement Time | User-defined (up to 60 minutes) |
| Reflectance Accuracy | ±2 dB |
| Real-Time Refresh Rate | 3 Hz (typical) |
| Laser Safety | Class 1M |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimensions | 7.87 x 6.1 x 2.68 in (20 x 15.5 x 6.8 cm) |
| Weight | 2.8 lbs (1.3 kg) |
