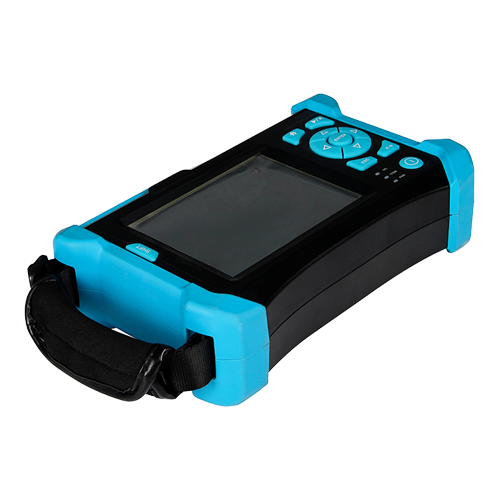

Handheld Optical Fiber OTDR with Intelligent Testing Tools – Amuse Tech Solutions
Experience intelligent testing with a large touch screen, long battery life, and shockproof design for efficient optical network measurements.
Description
Features
- Large touch screen
- Long battery life
- Intelligent testing tools
- Dustproof and shockproof design
Technical Specifications
| Display | 5.6” LCD touch screen |
| Memory Capacity of Trace | SD Card (4G) ≥1000 pcs |
| Duration of Measurement | Defined by user: 5s, 10s, 15s, 30s, or 1min, 2min, 3min |
| Dynamic Range (dB) | 21/19, 32/30, 32/30/30, 34/34 36/35 |
| Wavelength (nm) | 850 to 1300, 1310 to 1550, 1310 to 1490 to 1550, 1625 |
| Push Width (ns) | 5 to 20480 |
| Event Blind Zone (ft) | 32.8 ft (10 m), ≤5.91ft (≤1.8 m) |
| Attenuation Blind Zone (ft) | 65.62 ft (20 m), ≤32.81ft (≤10 m) |
| Linearity (dB) | ±0.05 |
| Loss Threshold (dB) | 0.05 |
| Loss Resolution Ratio (dB) | 0.01 |
| Sampling Resolution Ratio (ft) | 0.41ft to 26.25ft (0.125m to 8m) |
| Sampling Point | 32 K |
| Distance Uncertainty (ft) | ± (3.28ft + 16.4ft × distance + sampling interval) |
| Distance Scope (mi) | 0.19 mi (0.3 km) to 111.85 mi (180 km) |
| Typical Real-Time Refreshing | 0.2 |
| Dimension | 5.91 in × 9.25 in × 2.60 in (15 cm × 23.5 cm × 6.6 cm) |
| Weight | 3.3 lbs (1.5 kg) |
