Handheld Multifunction Tester Network Analysis – Amuse Tech Solutions

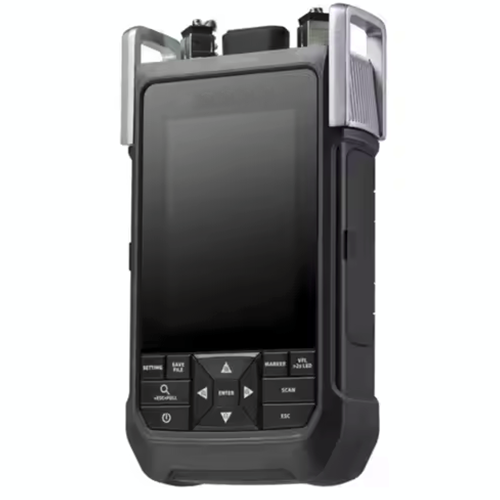

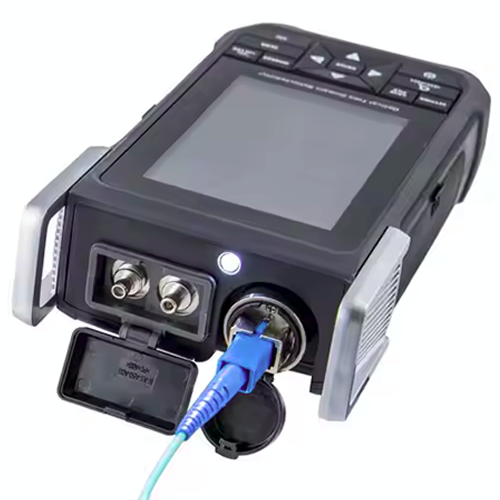

Handheld touch screen fiber optic tester. Includes OTDR, OPM, VFL and more. Ideal for comprehensive fiber network testing and maintenance.
Description
Features
- 10-in-1 Functionality
- Touchscreen Interface
- Comprehensive Testing
- Handheld Design
Technical Specifications
| Use | FTTx |
| Product Name | OTDR |
| Network | None |
| Multifunctions | OTDR/OLS/OPM/VFL/LED Light/RJ45/OLA SE/Loss Test |
| Power & Data Port | TYPE-C |
| Connector | SC/UPC interchangeable adapter or customize, SC/UPC or SC/APC |
| OPM Function | -50 dBm to +26 dBm, 2.5 mm universal connector, 850 nm, 980 nm, 1270 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1577 nm, 1625 nm, 1650 nm |
| VFL Function | 10 mW, 2.5 mm universal connector |
| Storage | Internal memory or TF card (optional) |
| Power Bank | Type-A 3.7 V, 5000 mAh |
| Model (TB-720-B) | Wavelength: 1310 nm /1550 nm, Dynamic Range: 32 dB /30 dB |
| Model (TB-720-M) | Wavelength: 850 nm /1300 nm, Dynamic Range: 20 dB /24 dB, Distance Setting: Max. 25 miles (40 km), Pulse Width: 5 ns to 1 μs |
| Model (TB-720-P1) | Wavelength: 1310 nm /1550 nm /1625 nm, 1625 nm with filter, Dynamic Range: 32 dB /30 dB /30 dB |
| Model (TB-720-P2) | Wavelength: 1310 nm /1550 nm /1650 nm, 1650 nm with filter, Distance Setting: Max. 93 miles (150 km), Pulse Width: 5 ns to 20 μs |
| OLS Function | Same wavelength and connector as OTDR |
| Event Dead Zone | 3.3 ft (1 m) |
| Attenuation Dead Zone | 19.7 ft (6 m) |
| Pulse Width (All Models) | 5 ns to 20 μs |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C), <90 % RH |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C), <90 % RH |
| Dimension | 6.3 in x 3.3 in x 1.5 in (16 cm x 8.5 cm x 3.8 cm) |
| Weight | 15.16 oz (430 g) |
