Handheld Fiber Testing with Mapping Splitter Support – Amuse Tech Solutions

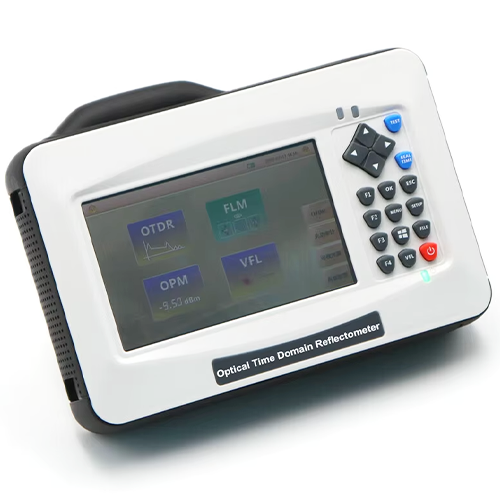

Handheld OTDR with high dynamic range, user-friendly interface, and integrated VFL and power meter for efficient fiber network testing
Description
Features
- Customizable dynamic ranges
- Supports splitters
- Fiber link mapping
- Online light alarm
Technical Specifications
| Display | 5-inch TFT-LCD touch screen for clear and intuitive operation |
| Battery Life | Up to 6 hours of continuous testing with backlight off |
| Data Storage | Internal memory capable of storing up to 40,000 test results |
| Interfaces | Equipped with USB and LAN ports for data transfer and remote control |
| Pulse Widths | Offers a range of pulse widths from 3 ns to 20 µs |
| Distance Range | Supports testing distances from 328 ft to 149 miles (100 m to 240 km) |
| Sampling Resolution | Minimum resolution of 0.16 ft (0.05 m) |
| Sampling Points | Supports up to 128,000 sampling points for detailed analysis |
| Distance Accuracy | ±(3.28 ft + test distance × 3 × 10⁻⁵ + sampling resolution) [±(1 m + test distance × 3 × 10⁻⁵ + sampling resolution)] |
| Refractive Index Setting | Adjustable from 1.2000 to 1.7000 in 0.0001 steps |
| Dynamic Range | Wide dynamic range for accurate testing over long distances |
| Event Dead Zone | Less than 2.62 ft (0.8 m) |
| Attenuation Dead Zone | Less than 9.84 ft (3 m) |
| Wavelengths | Supports multiple wavelengths for versatile testing |
| Connector Types | Compatible with SC/PC, FC/PC, and LC/PC connectors |
| Light Source | Integrated light source for added testing capabilities |
| VFL Power | Built-in visual fault locator with high visibility |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Humidity | 0% to 95% non-condensing |
| Dimensions | 7.68 in x 5.55 in x 1.73 in (19.5 cm x 14.1 cm x 4.4 cm) |
| Weight | Approximately 1.98 lbs (0.9 kg) |
