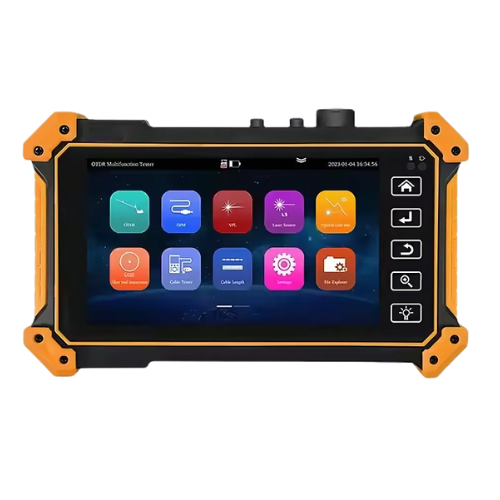

Handheld Fiber Tester with OLED Touch Screen Display – Amuse Tech Solutions
Handheld with a large screen, ideal for fiber optic network testing and troubleshooting. Features include cable testing and power meter function.
Description
Features
- OLED Touch screen display
- Optical power meter and VFL
- Cable length measurement
- Long battery working time
 Technical Specifications
| Display | 5.55 in OLED Touch Screen, 1280×720 Resolution |
| UTP Cable Test | Tests UTP connection status, detects near/mid/far-end faults |
| Optical Power Meter | Wavelengths: 1625-850 nm, Range: -70 to +6 dBm |
| Visual Fault Locator | 10 mW, 650 nm, Tests multi/single mode fiber bending/breakage, Range: 5 mi (8 km) |
| Output Wavelength | 1550 nm, 1310 nm to 1610 nm |
| Length Measurement | Up to 1.86 mi (3 km) |
| Output Power | -5 dBm to 0 dBm Adjustable |
| Frequency | 270 Hz / 330 Hz / 1 kHz / 2 kHz |
| Stability | ±0.2 dB/15 min (test after boot for 15 minutes) |
| Rechargeable | 3 Hours charging, 6 hours working time |
| Power Output | 5V 1A Power output, works as power bank |
| Operation Setting | Language: English, Chinese |
| Auto Off | 5 to 30 Minutes |
| Operating Temperature | 14 °F  to 122 °F (-10 °C to 50 °C) |
| Dimension | 7.2 in × 4.3 in × 1.4 in (18.3 cm × 11 cm × 3.65 cm) |
| Weight | 1 lb (0.45 kg) |
