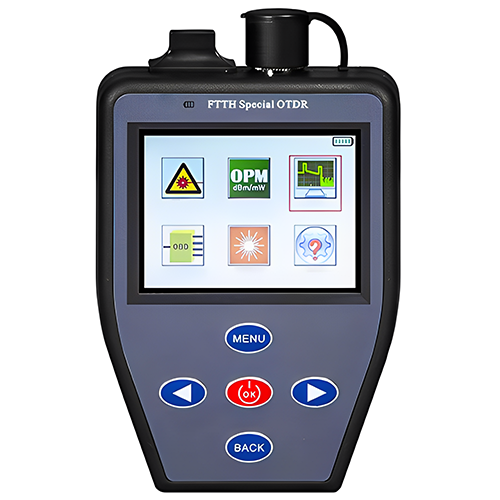

Handheld Fiber Tester with Lightweight and Portable Design – Amuse Tech Solutions
Handheld fiber tester with high accuracy, wide range, multifunctional OTDR, power meter, VFL, high wavelength, lightweight design.
Description
Features
- Lightweight and Portable Design
- Integrated Visual Defect Detection
- Durable Dustproof and Waterproof
- Long-Lasting High-Capacity Battery
Technical Specifications
| Wavelength Range | 800 nm to 1600 nm |
| Type of Probe | Ingas |
| Power Measurement Range | -70 dBm to +5 dBm (-50 to +25 optional) |
| Measurement Accuracy | 5% |
| Display Resolution | 0.1 dBm |
| Fiber Optic Category | Mono mode |
| Pulse Width Test | 10, 30, 100, 300 ns, 1, 3, 6 μs |
| Depth of Dispersion | 20 dB (6 μs) |
| Test Length (Event) | 31.07 mi (50 km) |
| Test Length (Attenuation) | 18.64 mi (30 km) |
| Feeding Mode | Electric lithium / 4000 mAh |
| AC Adapter | Micro USB 5V / 1000 mA |
| Single Maximum Current | ≤200 mA |
| Mechanical and Electrical Flow | ≤10 μA |
| Battery Life | ≥10 hours |
| Automatic Shutdown Time | Adjustable |
| Operating Temperature | 14 ℉ to 122 ℉ (-10 °C to +50 °C) |
| Storage Temperature | -13 ℉ to 158 ℉ (-25 °C to +70 °C) |
| Instrument Size | 4.92 in x 3.54 in x 1.29 in (12.5 cm x 9 cm x 3.3 cm) |
