Handheld Energy Analyzer with USB 32GB Memory & Power Monitoring – Amuse Tech Solutions
Discover the handheld energy analyzer with USB transfer, 32GB memory, Modbus-TCP/IP, Ethernet, and power quality monitoring for precise energy tracking.
Description
Features
- Supports USB data transfer

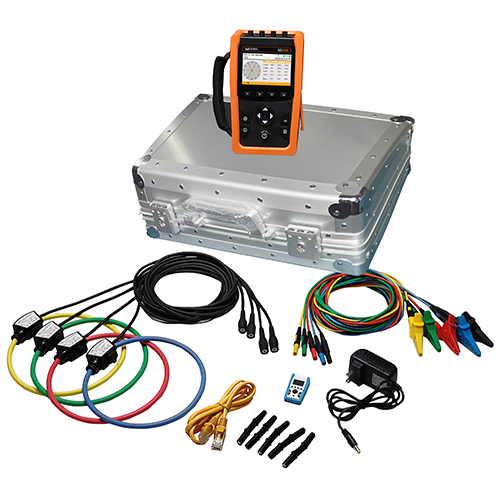

- Includes clamps, probes, adapter
- Features ADE9000 energy chip
- Ensures long-lasting operation
- 32GB internal memory capacity
- 4-inch HD IPS screen
- Tracks energy-related emissions
- RJ45 Ethernet and Modbus-TCP/IP
- Tracks events and harmonics
- Records voltage swell/dip
- Displays voltage, current waveforms
- Supports UDP protocol for reading
Technical Specifications
| Phase | Three Phase |
| Measuring Energy Range | 0 GWh to 999.9 GWh |
| Display Type | Analog and Digital |
| Accuracy Class | Class S |
| Application | Energy Consumption Monitoring |
| Storage Type | TF card |
| Storage Capacity | 32GB |
| Power Supply | 5VDC, 2A Adapter |
| Communication | Modbus TCP /RJ45 Ethernet |
| Current Transformer | 333 mV current clamp |
| Current Range | 0 A to 18000 A |
| Voltage Range | 0 V AC to 600 V AC |
| Battery Purely Working Time |  ≥6h |
| Battery Charging Time (off state) |   ≤5h |
| Function | Graphs, Waveform, Power quality analysis |
| Frequency | 45 Hz to 65 Hz |
| Dimensions | 8.464 in x 5.118 in x 2.362 in (21.5 cm x 13 cm x 6 cm) |
| Operating Temperature | -4°F to 131°F (-20℃ to +55℃) |
