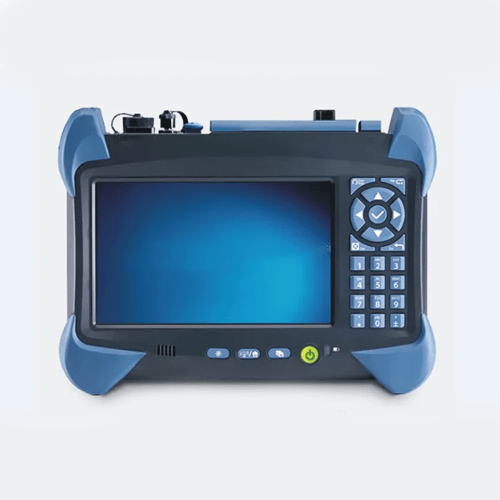

GR Core Ethernet Tester with 7 in Touchscreen & 8 GB Storage for Multi-Connection Testing – Amuse Tech Solutions

Ethernet tester with 7 in touchscreen, 8 GB memory, and flexible USB, Wi-Fi, Bluetooth connections for efficient network testing and management.

SKU: ATSENET-301 Category:

Description

Features

  • Flexible connection USB, mobile, Wi-Fi and Bluetooth
  • Support the third-party applications
  • Allow technical personnel able to quickly
  • Test management use EXFO connection function
  • Use Intel Atom processor with Windows embedded
  • Improve work efficiency and many purposes
  • Power Management
  • The latest battery technology provides unmatched



Technical Specifications

Display Touch screen, color, 800 pixels × 480 pixels TFT, 7 in (17.78 cm)
Connector Two USB 2.0 port
RJ-45 LAN 10 Mbps or 100 Mbps or 1000 Mbps
Optical fiber probe end connection checks (video)
Built-in Bluetooth and WIFI (optional)
Storage 8 GB internal memory (flash memory)
16 GB internal memory (flash memory), optional
Battery 8 hrs operating time Telcordia
Power Supply AC or DC adapter, input 100 V to 240 V AC, 50 Hz to 60 Hz, 2 A maximum, 24 V DC output, 90 W
Operating 23° F to 122° F (-5° C to 50°C)
Storage -40° F to 158° F (-40° C to 70° C)
Relative Humidity 0% to 95% non-condensing
Vibration 10 Hz to 500 Hz (on three main axes)
Mechanical Shock 29.92 in (760 mm) on six sides and eight main edges (according to GR-196-CORE)
Size 12.04 in x 7.75 in x 4.03 in (322 mm x 197 mm x 109 mm)
Weight 5.4 lb (2.5 kg)
