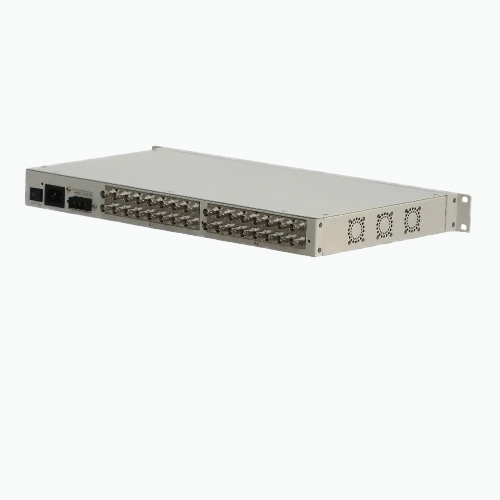

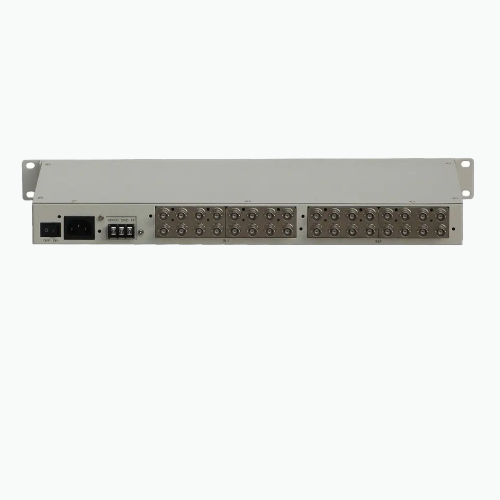

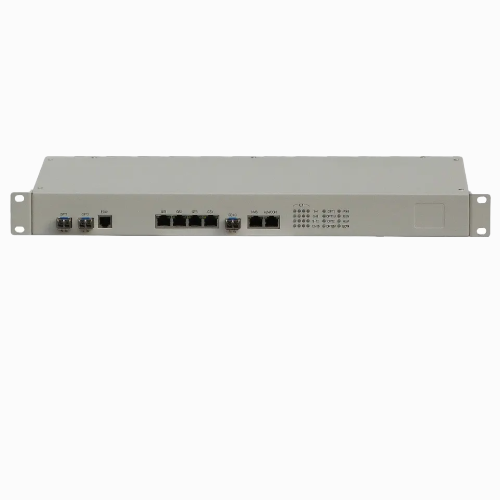

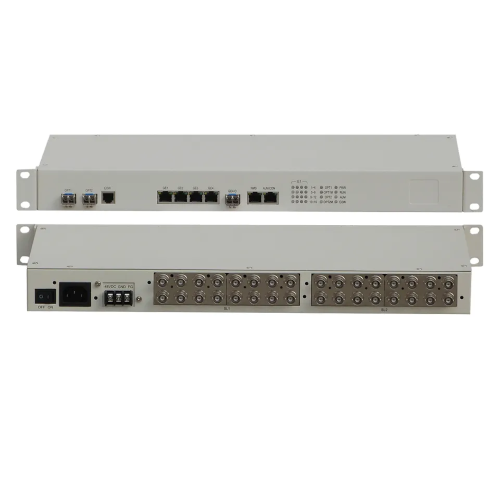

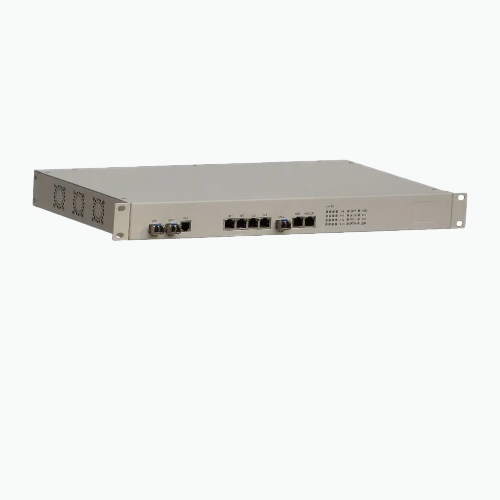

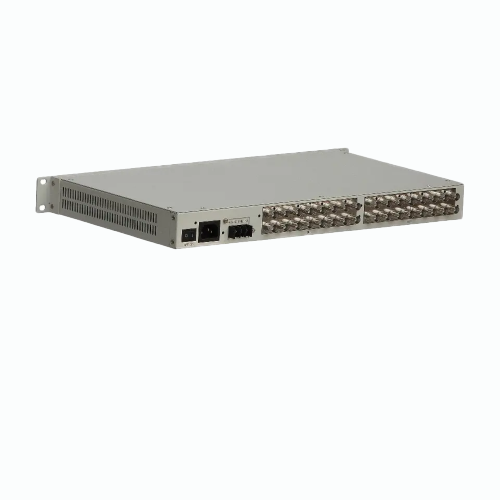

Gigabit SDH Ethernet Converter, 63 x VC12, Dual Uplink – Amuse Tech Solutions
Converts Gigabit Ethernet to SDH with dual STM-1/STM-4 uplinks, flexible E1 support, and robust network protection in a compact rack-mountable unit.
Description
Overview
Amuse Tech Solutions Gigabit SDH Ethernet Converter, 63 x VC12, Dual Uplink is a new, enhanced SDH or MSTP device. It is a carrier-class, high-compact platform and aimed for metro and SDH networks access. It can work as an Add-Drop Multiplexer (ADM), Termination Multiplexer (TM), and Gigabit Ethernet to SDH converter. It’s extremely strong cross-connection ability supports 64 K up to low or high order of SDH cross-connection. Not only can the STM-1 or STM-4 optical port work as the network uplink, but it can also configure the n x E1 ports as the network uplink simultaneously. The co-working optic and E1 network uplinks provide the customer with a very flexible networking configuration. Any combination of AC, DC dual power is supported and equipped on a rack-mountable casing. Such powerful cross-connect switches, flexible networking, link protection and redundancy power supply, various voice or data services make it the most function-rich, reliable and cost-effective solution for seamless migration of the E1 TDM network onto the SDH network.
Features
- 19 rack mountable, 1.75 in (44.5 mm) height compact size
- System supports point-to-point
- Chain and ring network applications
- Gigabit Ethernet to STM-1 conversion
- Data rate up to 63 x VC 12
- Simultaneous STM-1 or STM-4 and n x E1 network uplinks supported
- Ring protection with 2 x STM-1 or STM-4 optical ports
- Ethernet: 4 x GE or 3 x GE + 1 x GE optical
- Order-wire channel for voice communication
- Configurable system protection with SNCP and interface protection
- In-band management channel for remote control and system management
- Two expansion slots for E1 or various data or voice modules
- Alarm relay is provided for external alarm facility connection
- Remote firmware and software upgrade is available
- Supports redundant power supply with flexible unit combinations
Technical Specifications
| Optical Interface | |
| Bit rate | 155 Mbps ± 50 ppm or 622 Mbps ± 50 ppm |
| Output optical power | ≥-15 dBm |
| Receiving sensitivity | ≤-35 dBm |
| Optical wavelength | 1310 nm or 1550 nm |
| Optical interface connecter | SFP or LC |
| E1 Interface | |
| Bit rate | 2048 Kbps ±50 ppm |
| Code type | HDB3 code, G.703 standard |
| Input impedance | 75 W (default) or 120 W (optional) |
| Frame structure | G.704, G.706 |
| Compression law | to G.711 |
| Level | ±2.37 V ±10% |
| ETH Interface (10 M or 100 M or 1000 M) | |
| Interface rate | 10 Mbps or 100 Mbps or 1000 Mbps, auto |
| Standard | IEEE 802.3, IEEE 802.1Q (VLAN) |
| Connector | RJ45 |
| Order Wire Phone Use standard 2-wire phone set | |
| Channel | 1 |
| Coding | PCM |
| Bandwidth | 64 Kbps |
| Connector | RJ11 |
| Power Supply | |
| Input voltage | -48 V DC and 220 V AC |
| Voltage range | -36 V to –81 V DC, 165 V to 265 V AC |
| Power consumption | <10 W |
| Operation Environment | |
| Working temperature | 14 ⁰F to 122 ⁰F (-10°C to 50 °C) |
| Working humidity | <=90% (no condensed) |
| Mechanical Dimension | |
| Dimension | 17.32 in x 9.84 in x 1.73 in (440 mm x 250 mm x 44 mm) |
| Net weight | 8.81 lb (4 kg) |
