Gigabit Ethernet Tester with 8-Hour Battery & Full-Duplex Stream Support – Amuse Tech Solutions

Description

Overview

Amuse Tech Solutions gigabit ethernet tester is compatible with both indoor laboratory and outdoor field environments. It fully complies with Ethernet standards, supports the latest versions of ITU-T Y.1564, IETF RFC2544, IETF RFC3393, IEEE 802.3, IEEE 802.1 standards, and recommendations, among others.



Features

• Support full-duplex Ethernet data stream
• Support RFC2544
• Support Y.1564 (Optional)
• Support RFC3393
• Support L1 or L2 or L3 or L4 BERT test
• Support to generate 8 data streams in maximum
• Support to set flow priority according to CoS and ToS or DSCP
• Support filter and package capture online
• Support to verify SLA automatically by RFC2544 and Y.1564
• Support dual port through function
• Support SDT (Service disruption test)
• Support 3-layer CoS configuration to verify Metro Ethernet service
• Support to display test result graphically, easier to view
• Specialized for One Gigabit Ethernet installation
• Operation maintenance; and troubleshooting, or IP service



Technical Specifications

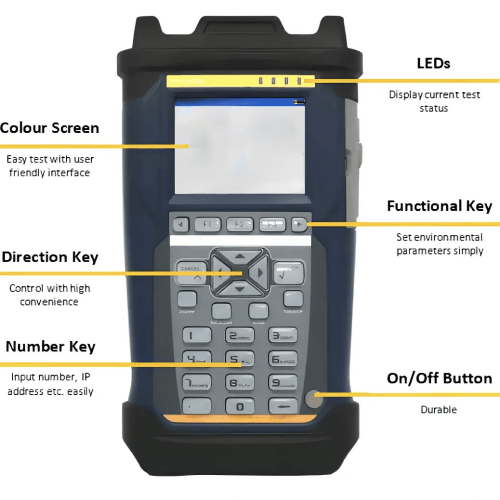

User Interface
Screen	3.5 in (8.89 cm) TFT touch screen (320 × 240)

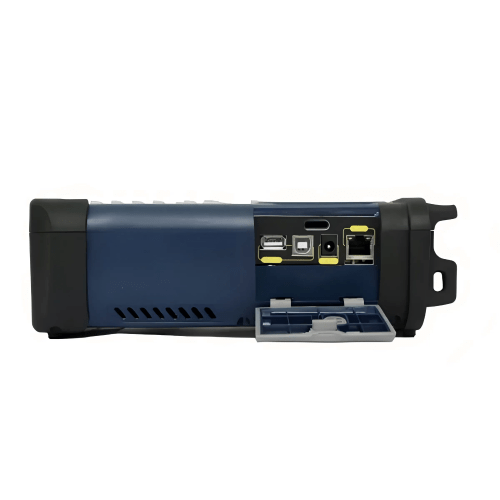

Other Interface
USB	·         USB 2.0, type A, 1; ·         USB 2.0 type B, 1
Ethernet	10 M or 100 M Base-T, RJ45
Storage	128 M
Temperature	·         Operating: 14 °F to 122 °F (-10 °C to 50°C) ·         Storage: -40 °F to 158 °F (-40 °C to 70 °C)
Relative Humidity	0% to 95% (non-condensing);
EMC	·         EN55022 or CIPSR22 ·         EN61000-3-2 ·         EN55024
Battery and Power Supply
Battery	·         Rechargeable Li-Lon battery; ·         Working time: 8 hrs; ·         Charging time: less 3 hrs typical: 77 °F (25 °C)
Power Supply	·         Input: 100 V to 240 V AC, 50 Hz to 60 Hz, 2 A; ·         Output: 15 V DC, 2 A
Physical Specifications
Size (H x W x D)	3.14 in x 5.31 in x 9.84 in (80 mm x 135 mm x 250 mm)
Weight	2.42 lb (1.1 kg)
