Gigabit Ethernet Fiber Converter, 12G Video Support – Amuse Tech Solutions
Versatile fiber converter with 12G video, gigabit Ethernet, and RS485 support. Handles HDTV 4K and 1080P with local 12G loop monitoring.
Description
Overview

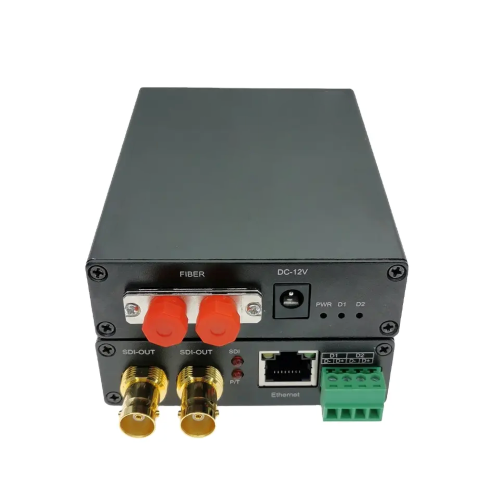

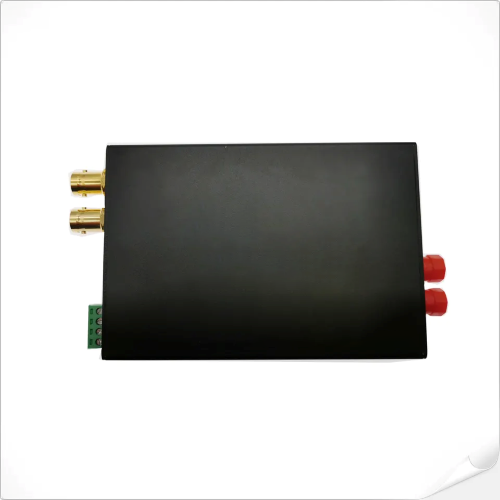

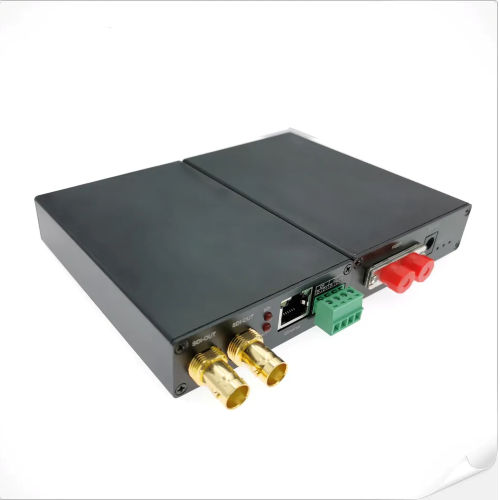

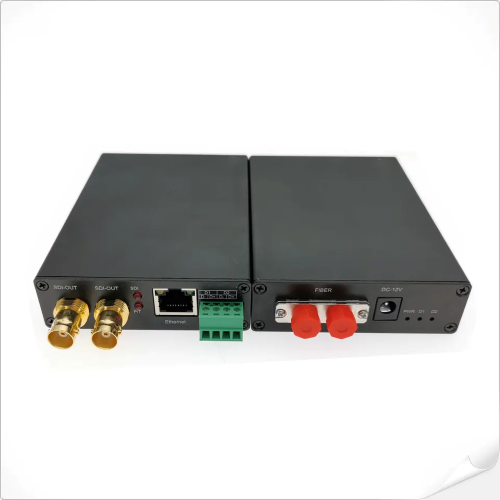

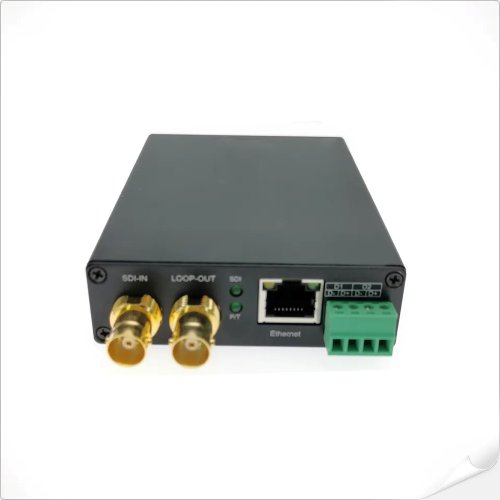

Amuse Tech Solutions Gigabit Ethernet Fiber Converter, 12G Video Support supports 1 CH 12 G Video (audio embedded) & 1 CH Gigabit Ethernet & 2 CH Backward RS485 transmitted via fiber optical cable and monitors the signal locally over a 12 G loop output. 12 G Video over Fiber Converters include one transmitter and one receiver for HDTV 4 K × 2 K (3840 × 2160 at 60 Hz), 1080 P, 1080 I, and 720 P.
Technical Specifications
| Formats | Supports ST-2082-1 (12 G), ST-2081-1 (6 G), ST-424 (3 G), ST-292 (HD) And ST-259 (SD) |
| Compatible | Compatible With DVB-ASI and AES10 (MADI) |
| Input | 1 x 12 G-SDI on BNC |
| Supported Resolution | HDTV 4 K × 2 K, 1080 P, 1080 I, 720 P |
| Power Consumption | 6 W (Max.) |
| Operating Temperature | 14 ⁰F to 158 ⁰F (-10 ℃ to 70 ℃) |
| Dimensions | 4.60 in x 3.14 in x 0.94 in (117 mm x 80 mm x 24 mm) |
| Power | 12 V DC |
