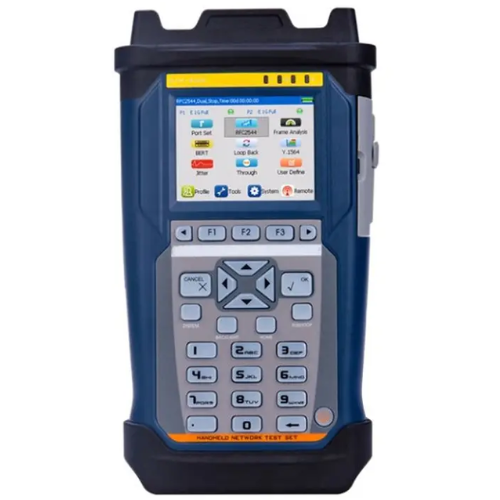

Gigabit Ethernet analyzer with RFC2544 & Y.1564 Support are designed and manufactured by Amuse Tech Solutions, which is specialized in one Gigabit Ethernet network deployment and comprehensive test, and compatible with indoor laboratory and outdoor field environment. It can fully meet Ethernet standard, support the latest version of ITU-T; Y.1564; IETF RFC2544; IETF RFC3393; IEEE 802.3; IEEE802.1 standards or recommendations and so on.
Features
- Support full-duplex 10 Mbps or 100 Mbps or 1000 Mbps Ethernet data stream
- Support RFC2544 (Includes: Throughput, Frame loss, Back-to-back and Latency)
- Support Y.1564 (Optional)
- Support RFC3393
- Support L1 or L2 or L3 or L4 BERT test
- Support to generate 8 data streams in maximum (MAC address, VLAN label, MPLS, IPV4 or IPV6 address, Payload and Bandwidth)
- Support to set flow priority according to CoS and ToS or DSCP
- Support filter and package capture online
- Support to verify SLA automatically by RFC2544 and Y.1564
- Support dual port through function
- Support SDT (Service disruption test)
- Support 3-layer CoS configuration to verify Metro Ethernet service
- Support to display test result graphically, easier to view
- Specialized in one gigabit ethernet installation, operation, maintenance and troubleshooting or IP service.
Technical Specifications
| Screen | 3.5 in (8.89 cm) TFT touch screen (320 pixels × 240 pixels) |
| USB | USB2.0, type A,1 USB2.0 type B, 1 |
| Ethernet | 10 M or 100 M Base-T, RJ45 |
| Storage | 128 M |
| Temperature | Operating: 14 °F to 122 °F (-10 °C to 50 °C); Storage: -40 °F to 158 °F (-40 °C to 70 °C); |
| Relative Humidity | 0% to 95% (non-condensing); |
| EMC | EN55022 or CIPSR22; EN61000-3-2; EN55024; |
| Battery | Rechargeable Li-Lon battery Working time: 8 hrs Charging time: <3 hrs (typical: 77 °F (25 °C)) |
| Power Supply | Input: 100 V to 240 V AC, 50 Hz to 60 Hz, 2 A Output: 15 V DC, 2 A. |
| Port | Electrical interface: 2 ports, 10 or 100 or 1000M Base-T Optical interface: 2 ports, 100 or 1000M Base-X User select-able optical module: 850 nm, 1310 nm, 1550 nm. |
| Ethernet Feature | Auto negotiation, full and half duplex, flow control |
| Configuration | Monitor or generate, pass-through |
| Encapsulation | Ethernet type II, IEEE802.3 with 802.2, IEEE802.3 with SNAP |
| Traffic Generation | Variable line rate traffic generation, up to full line rate Traffic generate mode: continuous, burst, ramp, n-frame, n-burst, n-ramp Adjustable frame size: 38 bytes to 16000 bytes Frame size: constant, iMAX, random; User-defined traffic mix of unicast and broadcast frames Fixed or increment MAC or IP identifier User programmable DSCP or TOS byte Configurable IP and Ethernet source and destination addresses(support IPv4 and IPv6 addressing) User programmable TCP or UDP address Generate pause frames, respond to pause frames Answer incoming ARP, Ping requests (ON or OFF) |
| Stacked VLAN | Up to 3 user-settable VLAN tags Parameters per VLAN tag Ethernet type II 0x8100 (802.1Q), 0x88a8 (802.1ad), 0x9100, 0x9200, or 0x9300 User-defined VLAN ID, CFI, VLAN priority |
| Multi stream | Number of streams: up to 8 streams per port can be activated |
| Error Injection | FCS, IP check sum error, CRC4 error, bit error |
| Alarm generation | No link |
| Status | Link status, interface type, jabber detected, frames present, MPLS or VLAN
speed, full or half duplex, signal present, bit rate of |
| Performance Statistics | Utilization, throughput, frame rate |
| Frame Statistics | Total frames, total testing frames, total not testing frames,
Uni-cast or multicast or broadcast frames, number of pause frames Number of FCS error-ed |
| Frame Distribution Statistics | Total valid or frames, <64, 64-127, 128-511, 512-1023, 1024-1518, >1518 |
| Multi stream | Display information per steam: Frame loss count or rate, throughput, latency, packet jitter, frames and bytes received and transmitted |
| Transmit Statistics | Total frames, unicast or multicast or broadcast |
| Filter | Filter condition support Source and destination MAC or IP, IPv6, VLAN ID and VLAN Priority, MPLS, IP TOS,TCP or UDP source and destination Port, Ethernet type and IP protocol |
| BER Test | Generation and detection of test pattern, count of errors in received test pattern Pattern generation: layer 1 to layer 4 Frame loss count and frame loss seconds BER measurement results Test pattern: PRBS9, PRBS11, PRBS15, PRBS20, PRBS23, PRBS31, CRPRJ, JTPAT, SPAT, 32bits user defined |
| Error Injection | FCS, IP check sum error, UDP or TCP check sum error, bit error |
| Service Disruption Test | Service disruption test activated as part of BER test Max or avg service disruption test, resolution: 0.1us Number of service disruption |
| Loopback Test | Layer 1 to layer 4 loopback test Advanced loopback test Packet loss setting: percentage, packet count, time Loopback drop enable: protocol loss, protocol pass, control, CRC error,IP or TCP or UDP error |
| Pass Through Test | Pass through monitoring function between 2× 1GE electrical or 2×1GE optical ports Advanced pass-through test Packet loss setting: percentage, packet count, time Pass through drop enable protocol loss, protocol pass, control, CRC error,IP or TCP or UDP error |
| Jitter Test | G.711, G.723.1, G.729 and so on VoIP packet jitter test Jitter result: hits, min, max, current, average |
| RFC2544 Test | Switch or router test and single ended network test mode: Throughput, frame loss, latency, back-to-back End-to-end network test mode (2 units in local-remote setup): Throughput, frame loss, back-to-back |
| Service Activation Test | ITU-T Y.1564 Service Activation Test: Up to 8 services per port Colour-aware and non-colour-aware in combinations Test modes: one-way (uni-or bi-directional, symmetrical, or asymmetrical),round-trip |
| Service Activation Test | Verification against service acceptance criteria: information rate,
Frame transfer delay, Frame delay variation, frame loss rate, availability |
| Size | 3.15 in x 5.31 in x 9.84 in (8 cm (H)x 13.5 cm (W) x 25 cm (D)) |
| Weight | 2.43 lb (1.1 kg) |
