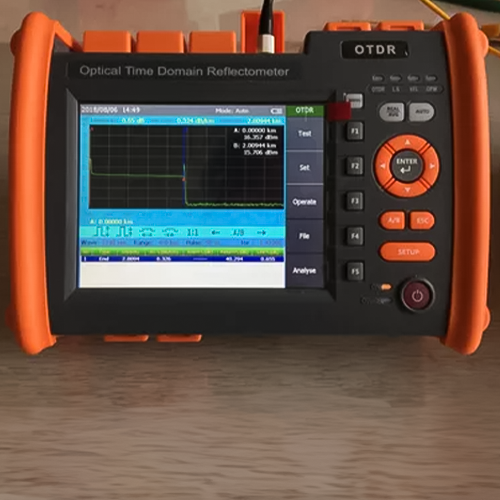

Fiber Optical Reflectometer with Automatic Measurement Mode – Amuse Tech Solutions
Fiber optic cable tester with advanced diagnostics, ensuring accurate fault detection, high efficiency, and reliable network performance
Description
Features
- Automatic Measurement Mode
- Multi-Wavelength Analysis
- FTTx Online Testing
- Waveform Difference Comparison
Technical Specifications
| Optical Interface | FC/UPC (PC and APC selectable) |
| Data Interface | USB, SD card |
| Visible Fault Locator | 650 nm wavelength, ≥-3 dBm output power, max testing distance 1.86 miles (3 km) |
| Power Supply | Lithium battery continuous operation ≥8 hours |
| Wavelengths | 850/1300 nm (multimode), 1310/1550 nm (single-mode) |
| Dynamic Range | 23 to 21 dB (multimode), 32 to 30 dB (single-mode) |
| Pulse Widths | 5 to 20,480 ns |
| Event Dead Zone | 6.6 ft (2 m) |
| Attenuation Dead Zone | 29.5 ft (9 m) |
| Linearity | ±0.05 dB/dB |
| Loss Threshold | 0.05 dB |
| Loss Resolution | 0.01 dB |
| Sampling Resolution | 0.41 ft to 26.25 ft (0.125 to 8 m) |
| Sampling Points | 32,000 |
| Distance Uncertainty | ±(3.28 ft + 5×10⁻⁵× distance + sampling interval) [±(1 m + 5×10⁻⁵× distance + sampling interval)] |
| Distance Range | 0.19 to 111.85 miles (0.3 to 180 km) |
| Real-Time Refresh Rate | 0.2 seconds |
| Trace Memory Capacity | SD Card (2 GB), >10,000 traces |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimensions (H×W×D) | 5.91 in ×9.25 in ×2.6 in (15 cm × 23.5 cm ×6.6 cm) |
| Weight | 3.3 lbs (1.5 kg) |
