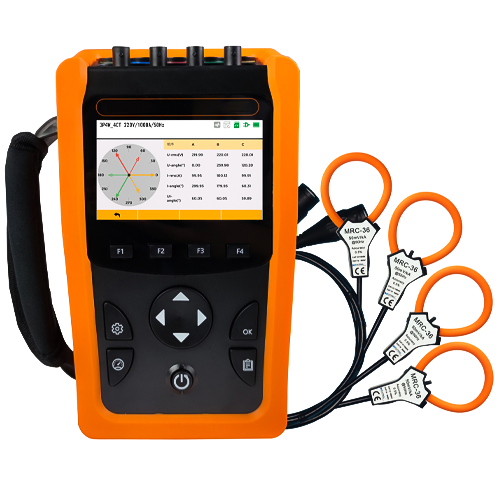

Handheld power quality analyzer with 0-999.9 MWh range, waveform analysis, rugged design, MODBUS TCP communication, and Class S accuracy.
Description
Features
- Accurate energy measurement
- Multi-functional power analysis
- Rugged, durable design
- MODBUS TCP communication
Technical Specifications
| Application | Energy saving/monitoring/Renewable energy |
| Communication | Modbus TCP /RJ45 Ethernet |
| Current Sensor | Rogowski coil current clamp |
| Current Transformer | 333 mV CT / 333mV Current probe |
| Current Range | 0 A to 18000 A |
| Voltage Range | 0 VACS to 600 VACS |
| Function | Graphs, Waveform, Power quality analysis |
| Frequency | 45 Hz to 65Hz |
| Application | Energy saving/monitoring/Renewable energy |
| Type | Handheld Three phase power quality analyzer |
| Application Field | Power analysis, Power measurement, Power quality analysis |
| Current Sensor | Rogowski coil Voltage-output current clamp, 333 mV CTs |
| Voltage Access | Direct access Connected through voltage transformer |
| Storage Type | TF card |
| Capacity | 32 GB |
| Data Export | U disk export (U disk file is FAT32 system) |
| Communication Interface | RJ45 to Ethernet |
| Communication Protocol | Modbus-TCP |
| Power Supply | 5 VDC, 2 A |
| Battery | Rechargeable lithium battery, specification 18650, 2 pcs, capacity about 4000 mAh |
| Display | 3.97-inch IPS display |
