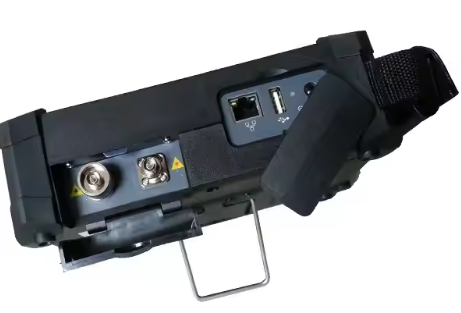

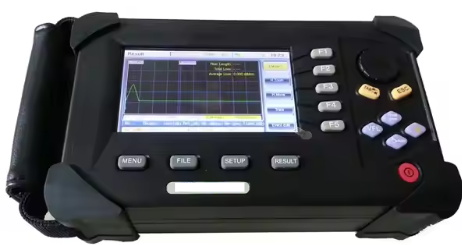

Fiber Optical Cable Tester with Online Work Light Detection – Amuse Tech Solutions
Real-time OTDR with intelligent trace scanning, event analysis, and online work light detection for efficient and precise fiber testing.
Description
Technical Specifications
| Optical Connector | FC/SC/STÂ (universal connector) |
| Battery | NimH Smart Charge Battery |
| Continuous Working Time * | >10 hours (From Bell core TR-NWT-001138) |
| Pulse Width | 10 ns,30 ns,50 ns,100 ns, 300 ns,1.0 ms, 2.5 ms,10 ms |
| Event Dead Zone(m) | 8.20 ft (2.5 m) |
| Attenuation Dead Zone(m) | 14 |
| Distance Range (Km) | 0.31 mi to 74.58 mi (0.5 km to 120 km) |
| Distance Measurement Accuracy | ± 3.28 ft (1 m) + sample space + measurement distance × 0.005%) |
| Linearity | ±0.05 dB/ dB |
| Memory capacity | 1000 |
| Fiber Type | SMF |
| Display | 3.5 in LCD |
| Dimensions | 9.05 in x 4.72 in x 1.35 in (23 cm × 12 cm × 6 cm) |
| Weight | 1.98 lb. (0.9 Kg) |
