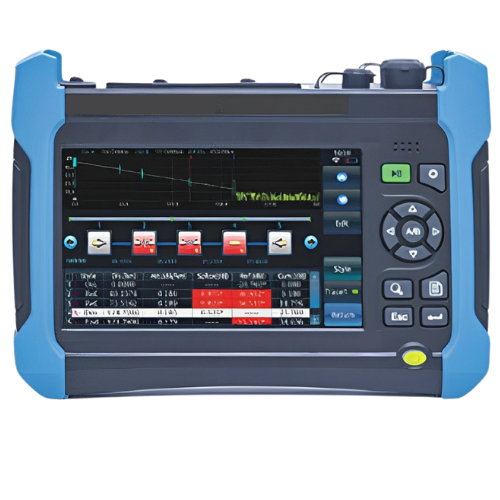

Fiber Optic Tester with Efficient Network Diagnostics – Amuse Tech Solutions
Discover the Fiber Optic Tester, a versatile solution for testing single-mode and multimode fibers at multiple wavelengths, multiple USB interfaces.
Description
Features
- Multi-wavelength testing capability
- 7-inch touch display
- 32/30dB dynamic range
- SMF and MM compatible
- Compact portable design
- USB and SD storage
- High-resolution fiber analysis
- User-friendly interface system
- Durable, reliable performance
- Efficient network diagnostics
Technical Specifications
| Use | FTTx |
| Warranty Time | 1 year |
| Fiber | SMF |
| Wavelength | 1310 nm/1550 nm |
| Dynamic Range | 32/30dB |
| Display Screen Type | 7-inch TFT-LCD touch screen |
| Connector | FC, SC, LC/UPC |
| Data Storage | SD Card (4G), >10,000 pieces |
| Interface | 3 USB ports (USB 2.0, Type A USB2, Type B USB1) |
| Power Supply | AC/DC adapter: 100 V to 240V, 50/60Hz; Internal Li Battery: 11.1V, 6800mAh |
| Built-in Power Meter | -70 dBm to +10 dBm |
| Built-in Visual Fault Locator | 650 nm / 10 mW |
| Environmental Adaptability | RH: 5 % to 95 %, no condensation |
| Operating Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to +70 °C) |
| Weight | Approximately 3.97 lb (1.8 kg) |
